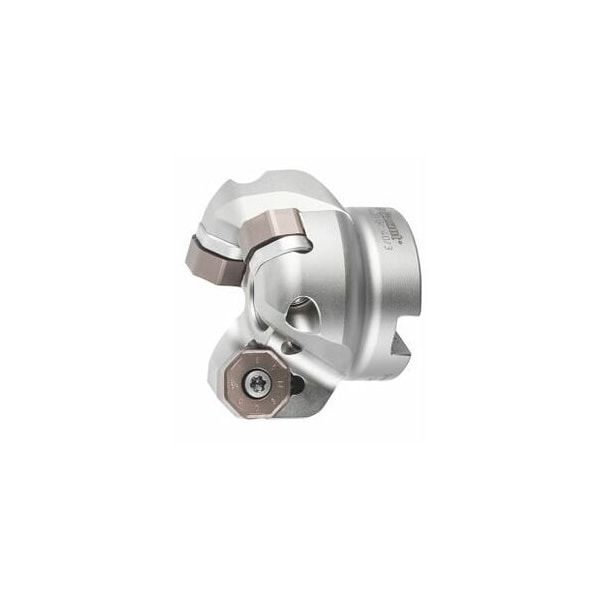

TwinCut 45 Degree Face Mill, Close Pitch, with Bore, 40mm Diameter, 3 Inserts
Mfr # 213420 40/3
Zoro # G516121531
product price:Â
$
418.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
40 mm
Series
TwinCut
Shim
219897
Insert Screw
219898 (15IP; 3.8 Nm)
Cutting Angle
45°
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 213420 40/3
- Zoro #
- G516121531
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 40 mm
- Mounting Bore Dia.
- 16 mm
Details
- Item
- Face mill
- Series
- TwinCut
- Shim
- 219897
- Insert Screw
- 219898 (15IP; 3.8 Nm)
- Cutting Angle
- 45°
- Tool Exchange
- PowerCard
- Number of Teeth
- 3
- Overhang
- 38.3 mm
- Dia/No. of Cutting Edges
- 40 mm/3
- Clamp Screw for Shim
- 219899
- Shank Type
- with bore
- Coolant Through
- Yes
Description
Version: From160 mm for arbors to DIN 2079- with 4 additional attachment holes and without internal cooling. Application: With double-sided 8-edge inserts ON.U or 4-edge inserts SN.U. Spare part: Shim No. 219897 for use with both types of indexable insert. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. Do not mix different types of insert ON.U and SN.U. Tool exchange: PowerCard Number of cutting edges Z: 3 maximum externalDmax for ON.U inserts: 51.8 mm maximum externalDmax for SN.U inserts: 55.2 mm Overall length Ltot for SN.U inserts: 40 mm Overall length Ltot for ON.U inserts: 38.3 mm Mounting bore : 16 mm suitable indexable insert: SN.U
