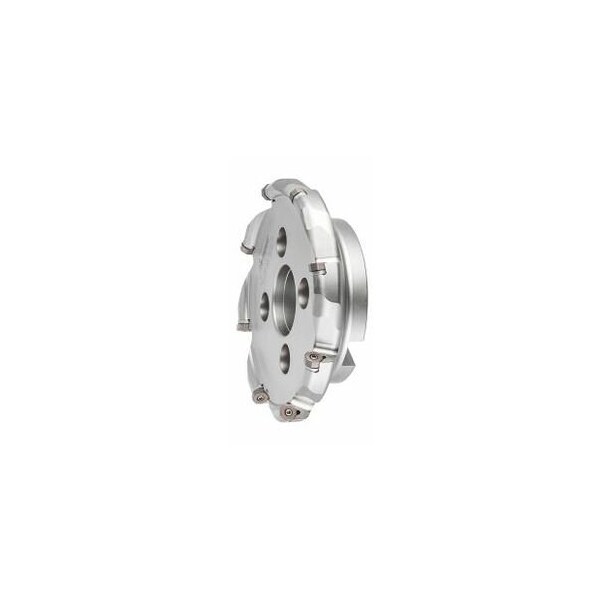

TwinCut 45 Degree Face Mill, Wide Pitch, with Bore, 200mm Diameter, 8 Inserts
Mfr # 213410 200/8
Zoro # G016121529
product price:Â
$
1,270.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
200 mm
Series
TwinCut
Insert Screw
219898 (15IP; 3.8 Nm)
Cutting Angle
45°
Shim
219897
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 213410 200/8
- Zoro #
- G016121529
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 200 mm
- Mounting Bore Dia.
- 60 mm
Details
- Item
- Face Mill
- Series
- TwinCut
- Insert Screw
- 219898 (15IP; 3.8 Nm)
- Cutting Angle
- 45°
- Shim
- 219897
- Overhang
- 61.3 mm
- Number of Teeth
- 8
- Dia/No. of Cutting Edges
- 200 mm/8
- Tool Exchange
- PowerCard
- Clamp Screw for Shim
- 219899
- Shank Type
- with bore
- Coolant Through
- Yes
Description
Version: From160 mm for arbors to DIN 2079- with 4 additional attachment holes and without internal cooling. Application: With double-sided 8-edge inserts ON.U or 4-edge inserts SN.U. Spare part: Shim No. 219897 for use with both types of indexable insert. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. Do not mix different types of insert ON.U and SN.U. Tool exchange: PowerCard Number of cutting edges Z: 8 maximum externalDmax for ON.U inserts: 211.8 mm maximum externalDmax for SN.U inserts: 215.2 mm Overall length Ltot for SN.U inserts: 63 mm Overall length Ltot for ON.U inserts: 61.3 mm Mounting bore : 60 mm suitable indexable insert: SN.U
