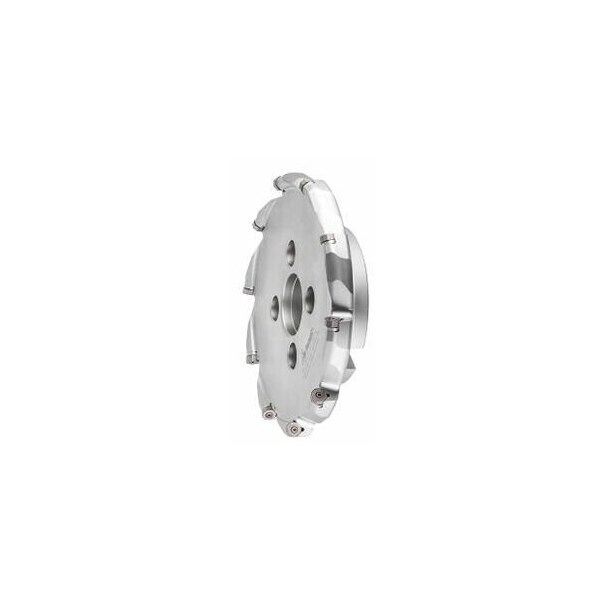

TwinCut 45 Degree Face Mill, Wide Pitch, with Bore, 250mm Diameter, 10 Inserts
Mfr # 213410 250/10
Zoro # G616121509
product price:Â
$
1,612.99
/ea
Free Shipping & Returns
Key Features
Cutting Dia.
250 mm
Series
TwinCut
Insert Screw
219898 (15IP; 3.8 Nm)
Cutting Angle
45°
Shim
219897
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 213410 250/10
- Zoro #
- G616121509
- UPC #
- -
- Country of Origin
- Italy
Dimensions
- Cutting Dia.
- 250 mm
- Mounting Bore Dia.
- 60 mm
Details
- Item
- Face Mill
- Series
- TwinCut
- Insert Screw
- 219898 (15IP; 3.8 Nm)
- Cutting Angle
- 45°
- Shim
- 219897
- Tool Exchange
- PowerCard
- Overhang
- 61.3 mm
- Clamp Screw for Shim
- 219899
- Shank Type
- with bore
- Dia/No. of Cutting Edges
- 250 mm/10
- Number of Teeth
- 10
- Coolant Through
- Yes
Description
Version: From160 mm for arbors to DIN 2079- with 4 additional attachment holes and without internal cooling. Application: With double-sided 8-edge inserts ON.U or 4-edge inserts SN.U. Spare part: Shim No. 219897 for use with both types of indexable insert. Note: Use GARANT torque screwdriver TQ No. 211750 size 3.8 with bit No. 674252 size 15IP. Do not mix different types of insert ON.U and SN.U. Tool exchange: PowerCard Number of cutting edges Z: 10 maximum externalDmax for ON.U inserts: 261.8 mm maximum externalDmax for SN.U inserts: 265.2 mm Overall length Ltot for SN.U inserts: 63 mm Overall length Ltot for ON.U inserts: 61.3 mm Mounting bore : 60 mm suitable indexable insert: SN.U
