Gast

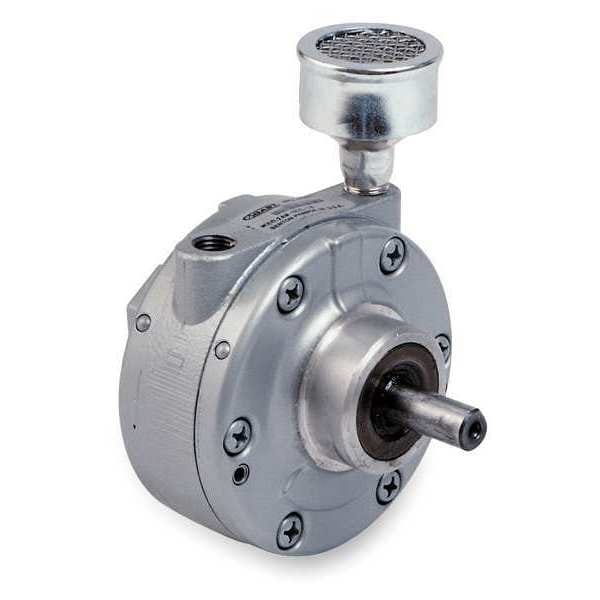

Air Motor, 0.75 HP, 30 cfm, 3000 rpm

original price: $306.99
23% off
new price: $233.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design AIR
  • Running Torque @ Max. Pressure 19.5 in-lb
  • Max. Air Flow 30 cfm
  • HP 0.75 hp
  • No Load RPM 3,000 RPM
See all product information

Product Information

  • Brand Gast
  • MFR # 2AM-NCC-96
  • Zoro # G0402954
  • Country of Origin United States
  • Category Air Motors

Dimensions

Shaft Dia. 1/2 in
Port Size 1/4 in NPT
Overall Length 5 in
Overall Width 4 in
Shaft Length 1 1/8 in
Overall Height 4 in
Length Less Shaft 3 41/50 in
Outside Diameter 4 in
Inlet Size 1/4 in
Manufacturers Warranty Length 1 yr
Shaft Diameter 1/2 in

Details

Item Air Motor
Motor Design AIR
Running Torque @ Max. Pressure 19.5 in-lb
Max. Air Flow 30 cfm
HP 0.75 hp
No Load RPM 3,000 RPM
Mounting Hub
Rotation CCW
Finish Gray Metallic
RPM @ Max. Torque 300 RPM
Includes Muffler
Max. Air Pressure 100 psi
Operating Temp. Range 0 Degrees to 250 Degrees F
Housing Material Cast Iron
Standards ATEX
Mount Type Hub
Weight 4.2 lb
Maximum Flow Rate 30 cfm
Mounting Orientation Any Angle
No Load Speed 3,000 RPM
System of Measurement Inch
Maximum Operating Pressure 100 psi
Minimum Ambient Temperature 34 Degrees F
Starting Torque 21 in-lb
Output Power @ Maximum Speed 0.9 hp
Speed @ Maximum Torque 300 RPM
Air Inlet Type NPT
Series 2AM
Maximum Torque 19.5 in-lb
Maximum Ambient Temperature 248 Degrees F
Minimum Flow Rate 1 cfm
Air Inlet Center to Center Distance 2 1/2 in
Housing Material Finish Painted
Shaft Material Steel
Output Power @ 50% Maximum Speed 0.5 hp
Output Power @ 25% Maximum Speed 0.3 hp
Air Consumption 30 cfm
Minimum Operating Pressure 20 psi
Housing Material Grade G2500
Nameplate Speed 3,000 RPM
Inlet Gender Female
Motor Frame Material Cast Iron
Shaft Material Grade 197-223 BHN
Shaft Orientation Inline
Number of Vanes 4

Description

Air Motor, Output Power @ Maximum Speed 0.9 hp, Maximum Torque 19.5 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 30 cfm, Shaft Diameter 1/2 in, Shaft Length 1 1/8 in, Mount Type Hub, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CCW, Housing Material Cast Iron, Shaft Material Grade 197-223 BHN, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width Not Applicable, Weight 4.2 lb, Housing Material Grade G2500, Housing Material Finish Painted
