Shop GAST

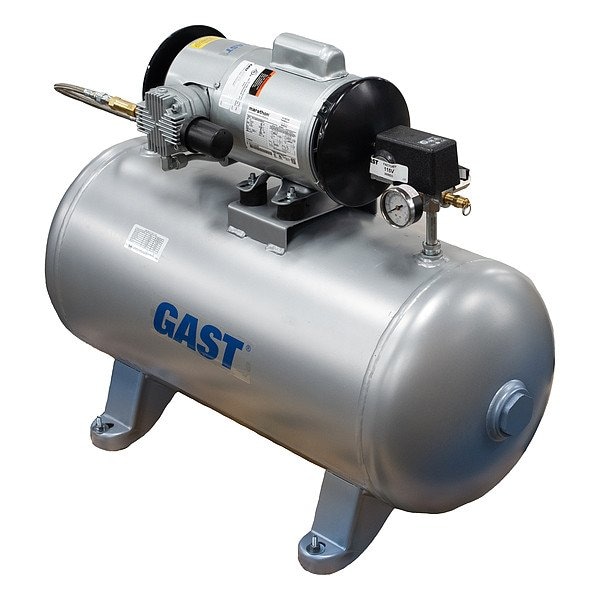

Electric Air Compressor, 0.25 hp, 1 Stage

  • Mfr # 2LAF-46T-M200EX

  • Zoro # G3238295

product price:
$
2,370.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil-Less
HP
1/4
Phase
Single
Voltage
115
Max. Pressure
50 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2LAF-46T-M200EX
Zoro #
G3238295
UPC #
-
Country of Origin
United States
Item
Electric Air Compressor
Lubrication Type
Oil-Less
HP
1/4
Phase
Single
Voltage
115
Max. Pressure
50 psi
Compressor Type
Tank Mounted
(F)NPT Outlet
1/4 in
Max. Pressure - Air Compressor
50 psi
ASME Tank
Yes
Tank Style - Air Compressor
Hot Dog
Style - Air Compressor
Simplex
Input Voltage - Air Compressor
120V AC
Hz
60
HP - Air Compressor
0.25 hp
Cylinder Material
Cast Iron
Compressor Package Type
Base Model
Finish
Gray Paint
Pump Location - Air Compressor
Tank Mounted
Off Pressure Switch Setting
50 psi
On Pressure Switch Setting
30 psi
Item - Air Compressor
Fire Sprinkler Air Compressor
Number of Stages - Air Compressor
1
Motor Type
Open Dripproof
Pump RPM
1,750
Lubrication Type - Air compressor
Oil Free
Number of Stages
1
Standards
UL 2125
Phase - Electrical
1
Tank Type
Horizontal
Includes
Check Valve, Inlet Filters, Pressure Safety Valve, Pressure Switch, Tubing and Fittings
Thermal Protection
InterN/Al Thermal Protector
Frequency
60 Hz
Maximum Speed
1,750 RPM
Duty Cycle
Continuous
Outlet Gender
Female
Pump Location
Top Mount
Input Voltage
120V AC
Enclosure Type
Open Dripproof
Outlet Type
NPT
Pump Type
Piston
Free Air Flow Rate @ Maximum Pressure
1.5 cfm
Maximum Operating Pressure
50 psi
Current Rating
5.8 A
Control Type
Pressure Switch
Pump Style
Simplex
Air Tank Style
Hot Dog
Output Power
0.25 hp

Description

The Gast 2LAF-46T-M200EX is an oil-free electric air compressor. It operates on 120V AC single-phase power at 60 Hz at a rated 1/4 hp output, with a 2 gal hot dog air tank. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 1.5 cfm at maximum pressure, and a maximum continuous pressure of 50 psi. It has a maximum speed of 1,750 RPM, and a full-load current of 5.8 A. Construction includes a cast iron cylinder, and an open drip-proof motor. Enclosure type is open drip-proof. Air connections are a 1/4 in inlet and a 1/4 in NPT outlet. Overall dimensions are 26 x 13 x 21 in (L x W x H). Duty cycle: continuous.
