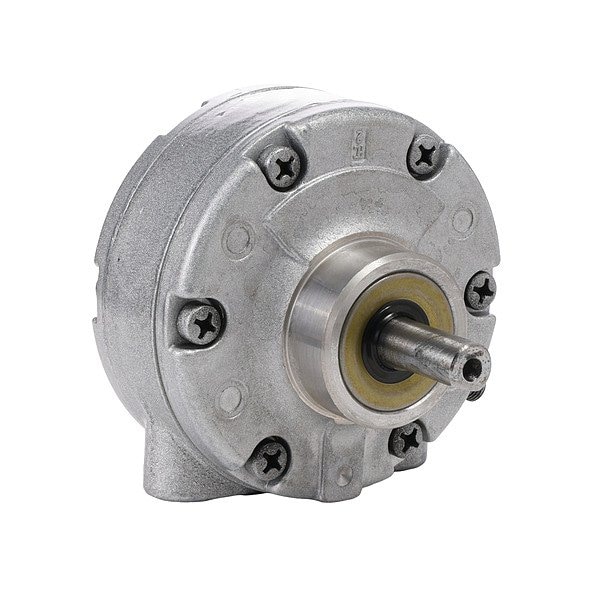

Gast Standard 2Am-Ncw-7B Air Motor
Mfr # 2AM-NCW-7B
Zoro # G0602710
product price: $326.99
/ea
Free Shipping & Returns
Key Features
Motor Design
AIR
Rotation
CW
Overall Length
5 in
Mount Type
Hub
Includes
Muffler
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
2AM-NCW-7B
Zoro #
G0602710
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
5 in
Length Less Shaft
3 41/50 in
Shaft Length
1 1/8 in
Overall Width
4 in
Outside Diameter
4 in
Overall Height
4 in
Inlet Size
1/4 in
Shaft Diameter
1/2 in
Manufacturers Warranty Length
1 yr
Description
Gast Standard 2Am-Ncw-7B Air Motor, Output Power @ Maximum Speed 0.9 hp, Maximum Torque 19.5 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 30 cfm, Shaft Diameter 1/2 in, Shaft Length 1 1/8 in, Mount Type Hub, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CW, Housing Material Cast Iron, Shaft Material Grade 197-223 BHN, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width Not Applicable, Weight 4.2 lb, Housing Material Grade G2500
