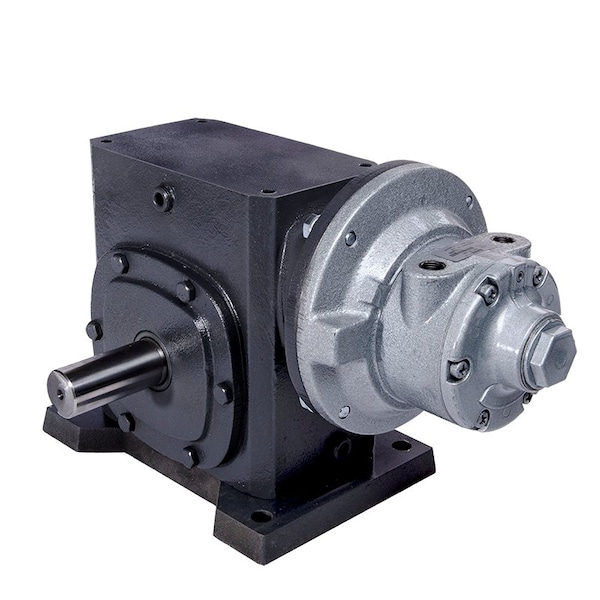

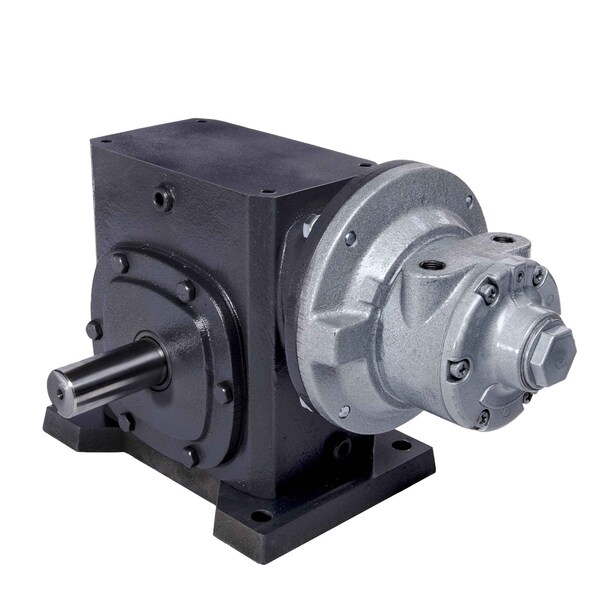

Gast Standard 4Am-70C-Cb20 Air Motor

  • Mfr # 4AM-70C-CB20

  • Zoro # G1176038

product price:
$
1,846.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Air
Rotation
CW/CCW
Overall Length
14 1/4 in
Standards
ATEX
Length Less Shaft
6 11/16 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4AM-70C-CB20
Zoro #
G1176038
UPC #
-
Country of Origin
United States
Item
Gast Standard 4Am-70C-Cb20 Air Motor
Motor Design
Air
Rotation
CW/CCW
Standards
ATEX
Mount Type
Face
Includes
AGMA #8 Lubricant in Gear Chamber, High Strength Steel Output Shaft with Key and Plastic Cover, Tapered Roller Bearing and Hardened Polished Steel Worm Mating with Forged, Heat Treated High Manganese Bronze Worm Gear
Weight
60 lb
Output Location
Left Hand
Brake Type
None
Housing Material
Cast Iron
Air Consumption
72 cfm
Shaft Material
Steel
System of Measurement
Inch
Mounting Orientation
Horizontal
Motor Frame Material
Cast Iron
Nameplate Speed
150 RPM
Housing Material Finish
Painted
Gear Material
Steel
Maximum Operating Pressure
100 psi
Output Power @ Maximum Speed
1.1 hp
Output Power @ 50% Maximum Speed
0.8 hp
Minimum Operating Pressure
20 psi
Starting Torque
400 in-lb
Number of Output Shafts
1
Minimum Flow Rate
3 cfm
No Load Speed
150 RPM
Keyway Type
Flat Key
Maximum Ambient Temperature
248 Degrees F
Output Power @ 25% Maximum Speed
0.35 hp
Gear Type
Worm
Housing Material Grade
Gray Iron
Air Inlet Type
NPT
Inlet Gender
Female
Minimum Ambient Temperature
34 Degrees F
Shaft Orientation
Right Angle
Maximum Torque
480 in-lb
Air Inlet Center to Center Distance
2 1/2 in
Gear Ratio
20:1
Gear Material Grade
8620
Maximum Flow Rate
72 cfm
Seal Material
Nitrile Rubber
Series
4AM
Max. Air Pressure
79.77 psi
Number of Vanes
8
Output Shaft Type
Keyed

Description

Gast Standard 4Am-70C-Cb20 Air Motor, Output Power @ Maximum Speed 1.1 hp, Maximum Torque 480 in-lb, No Load Speed 150 RPM, Maximum Flow Rate 72 cfm, Shaft Diameter 1 1/8 in, Shaft Length 2 13/16 in, Mount Type Face, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Gear Ratio 20:1, Air Consumption 72 cfm, Housing Material Finish Painted, AGMA Gear Class Not Applicable, Air Inlet Center to Center Distance 2 1/2 in, Inlet Gender Female
