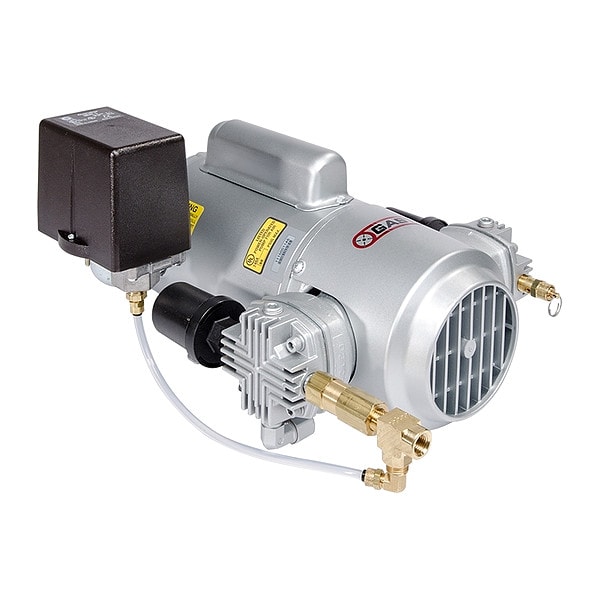

Piston Air Compressor, 1/2HP, 115/230V, 1Ph

  • Mfr # 4LCB-246S-M450GX

  • Zoro # G1125686

product price:
$
1,510.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil Free
Number of Cylinders
2
HP
1/2 hp
Phase
Single
Voltage
115/230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4LCB-246S-M450GX
Zoro #
G1125686
UPC #
-
Country of Origin
United States
Item
Piston Air Compressor
Lubrication Type
Oil Free
Number of Cylinders
2
HP
1/2 hp
Phase
Single
Voltage
115/230V AC
Sound Rating
75 dBA
Free Air CFM @ 0 PSI
3.1
Temp. Range
32 Degrees to 104 Degrees F
Valve
Stainless Steel
Motor Type
Capacitor Start
RPM
1750
Thermal Protection
Yes
Max. PSI Cont./Int.
50/50
Hz
60
Free Air CFM @ 50 PSI
0
Finish
Paint
Cylinder Material
Cast Iron
Full Load Amps
12 A (at 115V) / 6 A (at 230V)
Free Air CFM @ 20 PSI
3.5
Application
Fire Sprinkler Systems
Standards
UL1450
Air Tank Style
Tankless
Motor Design
Capacitor Start
Pump Type
Piston
Maximum Operating Temperature
104 Degrees F
Electrical Connection
Wired Leads
Maximum Continuous Pressure
50 psi
Maximum Speed
1,750 RPM
Power Source
Corded Electric
Free Air Flow Rate
4.1 cfm
Frequency
60 Hz
Piston Type
Reciprocating
Output Power
0.5 hp
Control Type
Pressure Switch
Outlet Type
NPT
Current Rating
12 A, 6 A
Maximum Intermittent Pressure
50 psi
Sound Level
75 dBA
Minimum Operating Temperature
32 Degrees F
Inlet Type
NPT
Valve Material
Stainless Steel
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

The Gast 4LCB-246S-M450GX is an oil-free, twin-cylinder piston air compressor with a reciprocating design. It operates on 115/230V AC single-phase power at 60 Hz at a rated 1/2 hp output, in a tankless configuration. The oil-free design means the compression chamber runs without lubricant. It provides a free-air flow rate of 4.1 cfm, and a maximum continuous pressure of 50 psi. It has a maximum speed of 1,750 RPM, a full-load current of 12/6 A, and a measured sound level of 75 dBA. The operating temperature range is 32 to 104°F. Construction includes a cast iron cylinder, a capacitor-start motor, and stainless steel valves. Air connections are 1/4 in NPT inlet and outlet. Overall dimensions are 16.062 x 12.25 x 8.333 in (L x W x H).
