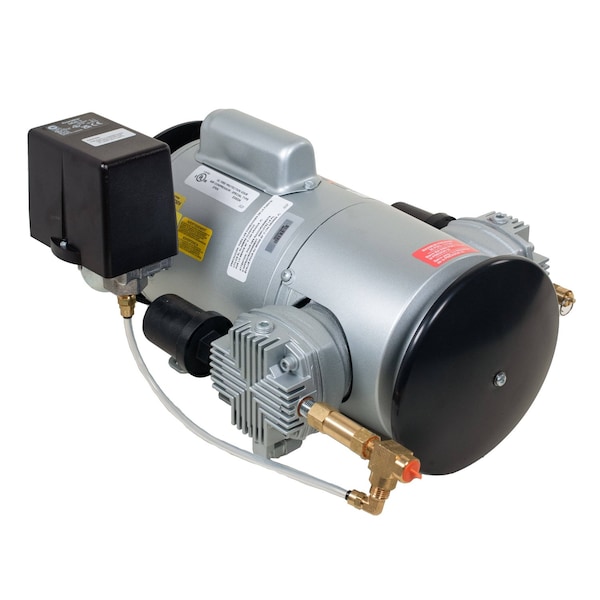

Piston Air Compressor, Piston Pump

  • Mfr # 3LBA-55S-M300AX

  • Zoro # G611677698


product price: $2,262.99
/ea
Free Shipping & Returns

Key Features

Number of Cylinders
2
Phase
Single
Voltage
115V AC
Inlet Size
1/4 in
Outlet Size
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3LBA-55S-M300AX
Zoro #
G611677698
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
15.55 in
Overall Height
8.11 in
Overall Width
12.35 in

Details

Item
Piston
Number of Cylinders
2
Phase
Single
Voltage
115V AC
Finish
Anodized
Standards
UL 1450 Listed
Thermal Protection
Yes
Air Tank Style
Tankless
Output Power
0.333 hp
Power Source
Corded Electric
Control Type
Pressure Switch
Free Air Flow Rate
3 cfm
Maximum Speed
1,725 RPM
Minimum Operating Temperature
41 Degrees F
Duty Cycle
Continuous
Valve Material
Stainless Steel
Mounting Style
Rigid Surface
Life Expectancy
1 yr
Valve Type
Check
Sound Level
75 dBA
Electrical Connection
Cord with Plugs
Frequency
60 Hz
Pump Type
Piston
Series
3L
Includes Sound Shield
Sound Shield Not Included
Maximum Continuous Pressure
50 psi
Plug Type
Three Prong
Exhaust Location
Top
Outlet Type
NPT
Maximum Operating Temperature
104 Degrees F
Piston Type
Reciprocating
Inlet Type
NPT
Maximum Intermittent Pressure
50 psi

Description

Piston Air Compressor, Lubrication Type Not Applicable, Number of Cylinders 2, Output Power 0.333 hp, Phase Single, Voltage 115V AC, Maximum Continuous Pressure 50 psi, Maximum Intermittent Pressure 50 psi, Maximum Vacuum Not Applicable, Free Air Flow Rate 3 cfm, Maximum Speed 1,725 RPM, Inlet Size 1/4 in, Inlet Type NPT, Inlet Gender Not Applicable, Outlet Size 1/4 in, Outlet Type NPT, Outlet Gender Not Applicable
