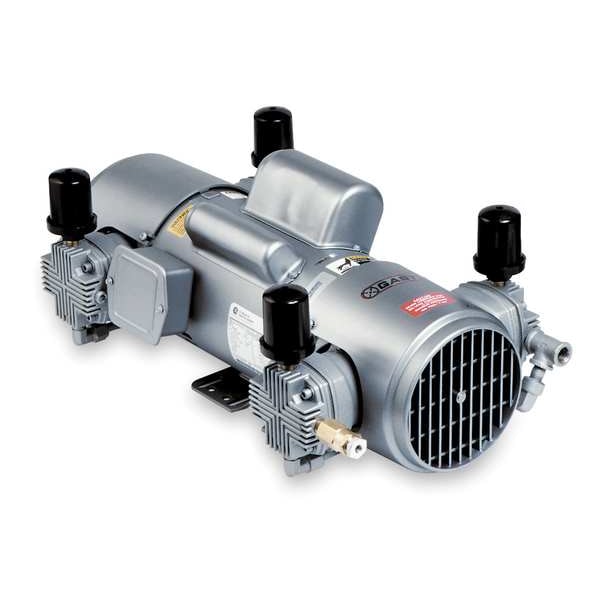

Piston Air Compressor/Vacuum Pump, 2HP

  • Mfr # 8HDM-251-M853

  • Zoro # G2159001


product price: $2,609.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oil Free
Number of Cylinders
4
HP
2 hp
Phase
Three
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8HDM-251-M853
Zoro #
G2159001
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
3/8 in
Outlet Size
3/8 in
Overall Length
22.375 in
Overall Height
8.75 in
Overall Width
12.375 in

Details

Item
Piston Air Compressor/Vacuum Pump
Lubrication Type
Oil Free
Number of Cylinders
4
HP
2 hp
Phase
Three
Voltage
230/460V AC
Sound Rating
74 dBA
Max. PSI Cont./Int.
100/100
Temp. Range
32 Degrees To 104 Degrees F
Free Air CFM @ 20 PSI
9.8
Free Air CFM @ 50 PSI
8.75
Motor Type
ODP
Cylinder Material
Aluminum
Free Air CFM @ 0 PSI
11.0
Finish
Paint
Valve
Stainless Steel
Thermal Protection
Automatic Reset
RPM
1725
Full Load Amps
6.6/3.3
Standards
CE
Hz
60
Free Air CFM @ 100 PSI
7.0
Inlet Type
NPT
Minimum Operating Temperature
32 Degrees F
Air Tank Style
Tankless
Maximum Intermittent Pressure
100 psi
Duty Cycle
Continuous
Output Power
2 hp
Electrical Connection
Wired Leads
Maximum Operating Temperature
104 Degrees F
Motor Design
Open Drip Proof
Control Type
Pressure Switch
Sound Level
74 dBA
Current Rating
6.6 A
Power Source
Corded Electric
Pump Type
Piston
Maximum Speed
1,725 RPM
Valve Material
Stainless Steel
Piston Type
Reciprocating
Maximum Continuous Pressure
100 psi
Outlet Type
NPT
Free Air Flow Rate
11 cfm
Frequency
60 Hz

Description

Piston Air Compressor/Vacuum Pump, Lubrication Type Oil Free, Number of Cylinders 4, Output Power 2 hp, Phase Three, Voltage 230/460V AC, Maximum Continuous Pressure 100 psi, Maximum Intermittent Pressure 100 psi, Free Air Flow Rate 11 cfm, Maximum Speed 1,725 RPM, Inlet Size 3/8 in, Inlet Type NPT, Outlet Size 3/8 in, Outlet Type NPT
