  11. Gast Standard 8Hdm-10-M853 Piston Pump

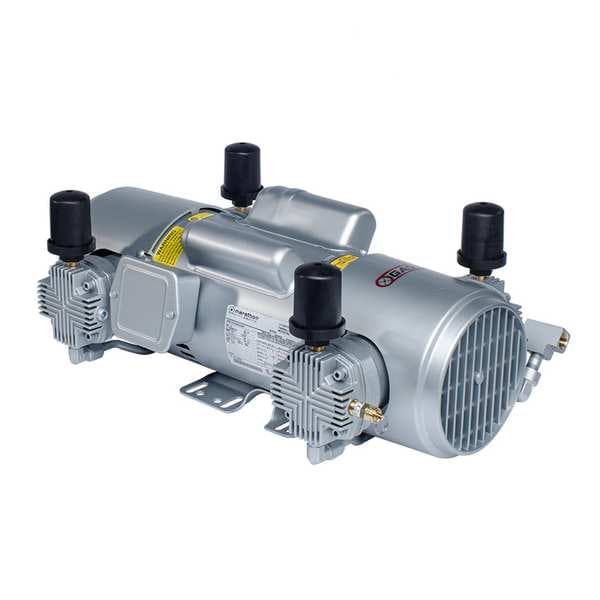

Gast Gast Standard 8Hdm-10-M853 Piston Pump 8HDM-10-M853 - main

Gast Standard 8Hdm-10-M853 Piston Pump

  • Mfr # 8HDM-10-M853

  • Zoro # G1175837

product price: $2,819.69
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oilless
Number of Cylinders
4
Phase
Single
Voltage
220 to 240V/380 to 440V AC, 230/460V AC
Inlet Size
3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8HDM-10-M853
Zoro #
G1175837
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
3/8 in
Outlet Size
3/8 in
Overall Length
21.579 in
Overall Height
8.35 in
Overall Width
12.359 in
Stroke Length
3/4 in
Mounting Hole Diameter
7/20 in

Details

Item
Piston Air Compressor
Lubrication Type
Oilless
Number of Cylinders
4
Phase
Single
Voltage
220 to 240V/380 to 440V AC, 230/460V AC
Cylinder Material
Aluminum
Finish
Painted
Thermal Protection
No
Standards
NFPA 13
Maximum Operating Temperature
104 Degrees F
Maximum Continuous Pressure
100 psi
Output Power
2 hp
Minimum Operating Temperature
41 Degrees F
Air Tank Style
Tankless
Sound Level
76 dBA
Inlet Type
NPT
Piston Type
Reciprocating
Maximum Intermittent Pressure
100 psi
Outlet Type
NPT
Pump Type
Piston
Valve Material
Stainless Steel
Frequency
50 Hz, 60 Hz
Power Source
Corded Electric
Duty Cycle
Continuous
Series
Gast
Control Type
Pressure Switch
Free Air Flow Rate
9.1 cfm, 11 cfm
Mounting Style
Thru-Bolt
Flow Rate @ 50 psi @ 50 Hz
7.2 cfm
Flow Rate @ 40 psi @ 50 Hz
7.5 cfm
Enclosure Rating
IP20
Flow Rate @ 20 psi @ 50 Hz
8.1 cfm
Current Rating
7.15A
Flow Rate @ 0 psi @ 50 Hz
9 cfm
Enclosure Type
Clean Dust Free
Engine Enclosure Material
Steel
Outlet Gender
Female
Inlet Gender
Female
Maximum Speed
1,725 RPM
Compressor/Pump Enclosure Material
Aluminum/Plastic
Exhaust Location
Front
Motor Design
3-Phase
Life Expectancy
16,000 hr
Valve Type
Reed
Electrical Connection
Spade Terminal

Description

Piston Air Compressor, Lubrication Type Oilless, Number of Cylinders 4, Output Power 2 hp, Phase Single, Voltage 220 to 240V/380 to 440V AC, 230/460V AC, Maximum Continuous Pressure 100 psi, Maximum Intermittent Pressure 100 psi, Maximum Vacuum Not Applicable, Free Air Flow Rate 9.1 cfm, 11 cfm, Maximum Speed 1,725 RPM, Inlet Size 3/8 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 3/8 in, Outlet Type NPT, Outlet Gender Female
