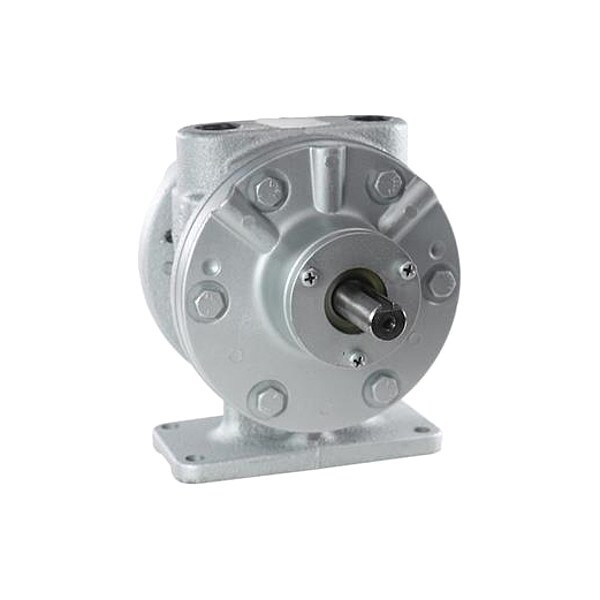

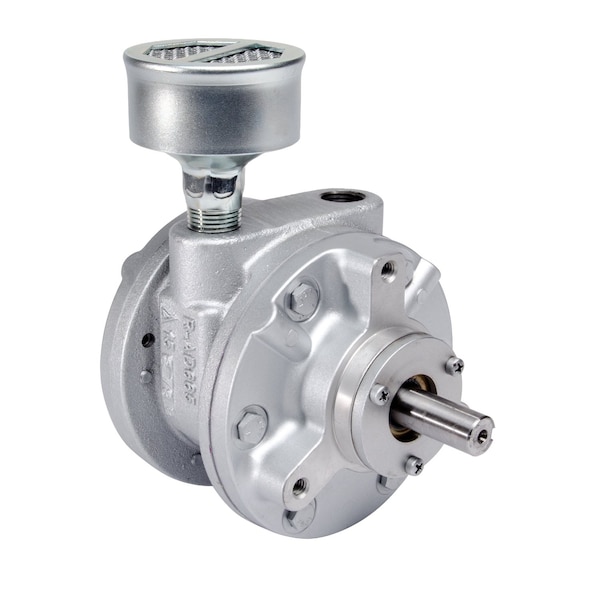

Stock 18/Skid 6Am-Nrv-7A Air Motor
Mfr # 6AM-NRV-7A
Zoro # G0602476
product price: $611.99
/ea
Free Shipping & Returns
Key Features
Motor Design
AIR
Rotation
CW/CCW
Overall Length
7 1/2 in
Shaft Length
1 3/8 in
Mount Type
Face
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
6AM-NRV-7A
Zoro #
G0602476
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
7 1/2 in
Shaft Length
1 3/8 in
Length Less Shaft
6 11/100 in
Overall Width
5 in
Outside Diameter
5 in
Overall Height
5 in
Keyway Depth
1/8 in
Keyway Width
1/8 in
Mount Hole Center-to-Center Width
4 in
Shaft Diameter
5/8 in
Inlet Size
1/2 in
Keyway Length
1 3/8 in
Manufacturers Warranty Length
1 yr
Mount Hole Center-to-Center Length
4 in
Description
Air Motor, Output Power @ Maximum Speed 4 hp, Maximum Torque 84 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 130 cfm, Shaft Diameter 5/8 in, Shaft Length 1 3/8 in, Mount Type Face, Inlet Size 1/2 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade C1137OR C1141, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 21 lb, Housing Material Grade G2500, Housing Material Finish Painted
