Shop All Air Motors
Gast

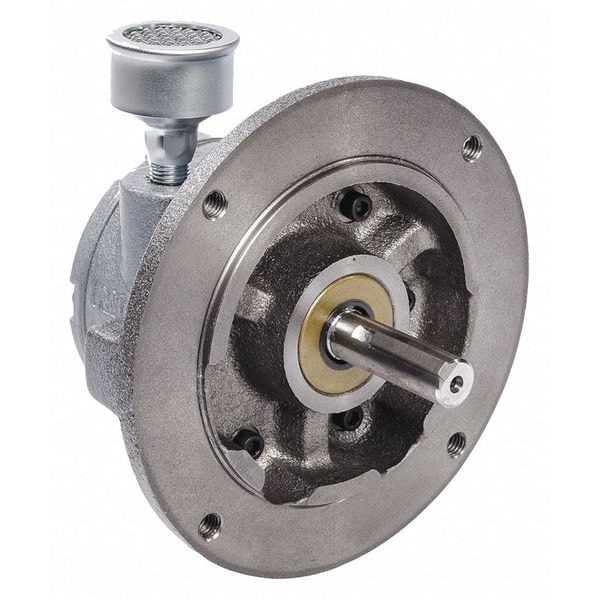

Stock 24/Skid 4Am-Nrv-50C Air Motor

product price: $462.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Motor Design AIR
  • HP 1.5 hp
  • Shaft Dia. 5/8 in
  • Rotation CW/CCW
  • Overall Length 6 3/4 in
See all product information

Product Information

  • Brand Gast
  • MFR # 4AM-NRV-50C
  • Zoro # G0602546
  • Country of Origin United States
  • Category Air Motors

Dimensions

Shaft Dia. 5/8 in
Overall Length 6 3/4 in
Length Less Shaft 4 63/100 in
Shaft Length 2 in
Keyway Depth 1/8 in
Overall Width 6 1/2 in
Manufacturers Warranty Length 1 yr
Overall Height 6 1/2 in
Mount Hole Center-to-Center Length 5 7/8 in
Shaft Diameter 5/8 in
Outside Diameter 6 1/2 in
Keyway Width 1/8 in
Inlet Size 1/4 in
Keyway Length 1 5/8 in
Mount Hole Center-to-Center Width 5 7/8 in

Details

Item Flanged Air Motor
Motor Design AIR
HP 1.5 hp
Rotation CW/CCW
Includes Muffler
Mount Type Face
Standards ATEX
Maximum Operating Pressure 100 psi
Keyway Type Square
Minimum Ambient Temperature 34 Degrees F
Air Inlet Type NPT
Air Consumption 72 cfm
Series 4AM
Starting Torque 32 in-lb
Output Power @ Maximum Speed 1.7 hp
Maximum Flow Rate 72 cfm
Mounting Orientation Any Angle
Housing Material Cast Iron
Air Inlet Center to Center Distance 2 1/2 in
Maximum Ambient Temperature 248 Degrees F
Maximum Torque 35 in-lb
Weight 11 lb
No Load Speed 3,000 RPM
System of Measurement Inch
Output Power @ 50% Maximum Speed 1.1 hp
Minimum Flow Rate 5 cfm
Shaft Material Grade 30-36
Housing Material Grade G2500
Minimum Operating Pressure 20 psi
Output Power @ 25% Maximum Speed 0.65 hp
Nameplate Speed 3,000 RPM
Housing Material Finish Painted
Shaft Material Steel
Inlet Gender Female
Motor Frame Material Cast Iron
Shaft Orientation Inline
Number of Vanes 4
Alternate Part Number 4AM-NRV-251

Description

Flanged Air Motor, Output Power @ Maximum Speed 1.7 hp, Maximum Torque 35 in-lb, No Load Speed 3,000 RPM, Maximum Flow Rate 72 cfm, Shaft Diameter 5/8 in, Shaft Length 2 in, Mount Type Face, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Shaft Material Grade 30-36, Bearing Protection Not Applicable, Maximum Operating Pressure 100 psi, Includes Muffler, Keyway Width 1/8 in, Weight 11 lb, Housing Material Grade G2500, Housing Material Finish Painted
