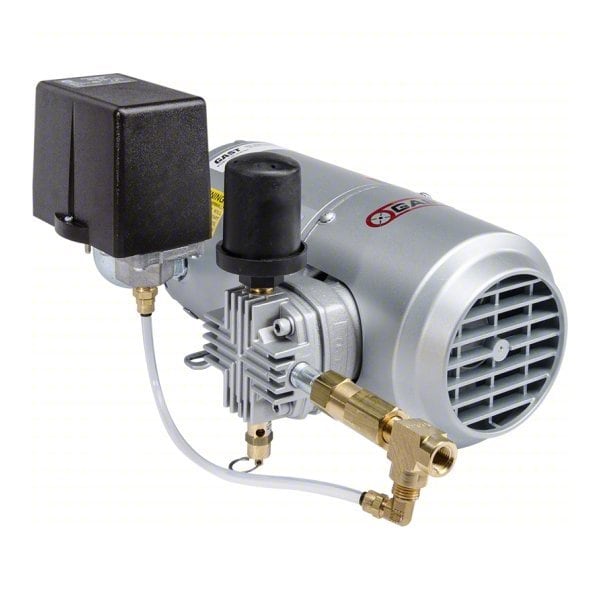

Stock 8/Skid 4Lcb-21-M450X Piston Pump

  • Mfr # 4LCB-21-M450X

  • Zoro # G0664931


product price: $1,529.99
/ea
Free Shipping & Returns

Key Features

Lubrication Type
Oilless
Number of Cylinders
2
Phase
Single
Voltage
115/230V AC
Inlet Size
1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4LCB-21-M450X
Zoro #
G0664931
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Overall Length
15.1 in
Overall Height
8.94 in
Overall Width
13.14 in

Details

Item
Piston Air Compressor
Lubrication Type
Oilless
Number of Cylinders
2
Phase
Single
Voltage
115/230V AC
Finish
Painted
Standards
NFPA 13
Cylinder Material
Aluminum
Thermal Protection
Yes
Air Tank Style
Tankless
Output Power
0.5 hp
Minimum Operating Temperature
32 Degrees F
Maximum Operating Temperature
104 Degrees F
Free Air Flow Rate
4.1 cfm
Maximum Continuous Pressure
50 psi
Pump Type
Piston
Maximum Intermittent Pressure
50 psi
Outlet Type
NPT
Inlet Type
NPT
Maximum Speed
1,725 RPM
Piston Type
Reciprocating
Control Type
Pressure Switch
Power Source
Corded Electric
Valve Material
Stainless Steel
Duty Cycle
Continuous
Frequency
60 Hz
Series
Gast
Mounting Style
Thru-Bolt
Inlet Gender
Female
Engine Enclosure Material
Steel
Exhaust Location
Front
Outlet Gender
Female
Enclosure Rating
IP20
Compressor/Pump Enclosure Material
Aluminum/Plastic
Enclosure Type
Clean Dust Free
Life Expectancy
16,000 hr
Valve Type
Reed
Electrical Connection
Spade Terminal
Motor Design
Capacitor Start

Description

Piston Air Compressor, Lubrication Type Oilless, Number of Cylinders 2, Output Power 0.5 hp, Phase Single, Voltage 115/230V AC, Maximum Continuous Pressure 50 psi, Maximum Intermittent Pressure 50 psi, Maximum Vacuum Not Applicable, Free Air Flow Rate 4.1 cfm, Maximum Speed 1,725 RPM, Inlet Size 1/4 in, Inlet Type NPT, Inlet Gender Female, Outlet Size 1/4 in, Outlet Type NPT, Outlet Gender Female
