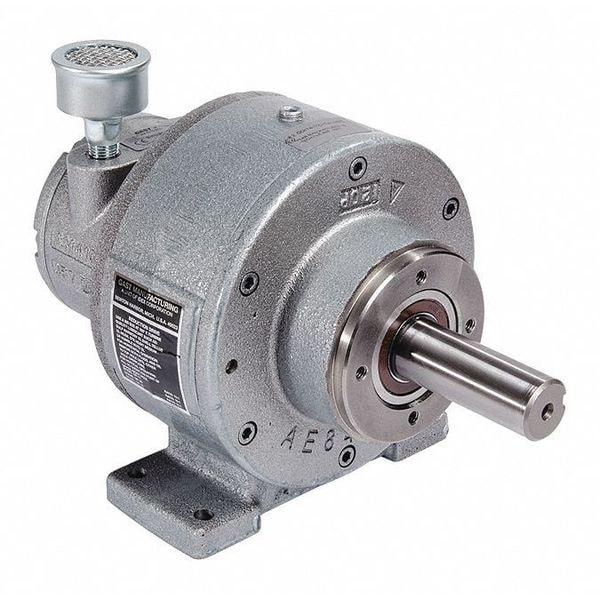

Stock 9/Skid 4Am-Rv-75-Gr20 Air Motor
Mfr # 4AM-RV-75-GR20
Zoro # G0602379
product price:Â $1,605.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Air
Rotation
CW/CCW
Overall Length
11 9/16 in
Standards
ATEX
Includes
AGMA #8 Lubricant in Gear Chamber, High Strength Steel Output Shaft with Key and Plastic Cover, Tapered Roller Bearing and Hardened Polished Steel Worm Mating with Forged, Heat Treated High Manganese Bronze Worm Gear
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
4AM-RV-75-GR20
Zoro #
G0602379
UPC #
-
Country of Origin
United States
Dimensions
Overall Length
11 9/16 in
Shaft Length
2 5/8 in
Length Less Shaft
9 in
Shaft Diameter
1 in
Mount Hole Center-to-Center Width
2 1/2 in
Inlet Size
1/4 in
Outside Diameter
6 1/8 in
Overall Height
6 5/8 in
Overall Width
6 1/8 in
Mount Hole Center-to-Center Length
2 1/2 in
Manufacturers Warranty Length
1 yr
Description
Air Motor, Output Power @ Maximum Speed 1.3 hp, Maximum Torque 275 in-lb, No Load Speed 300 RPM, Maximum Flow Rate 58 cfm, Shaft Diameter 1 in, Shaft Length 2 5/8 in, Mount Type Face, Foot, Inlet Size 1/4 in, Air Inlet Type NPT, Rotation CW/CCW, Housing Material Cast Iron, Gear Ratio 10:1, Air Consumption 58 cfm, Housing Material Finish Painted, Air Inlet Center to Center Distance 2 1/2 in, Inlet Gender Female, Output Power @ 25 Percent Maximum Speed 0.5 hp, Weight 28 lb, Series 4AM
