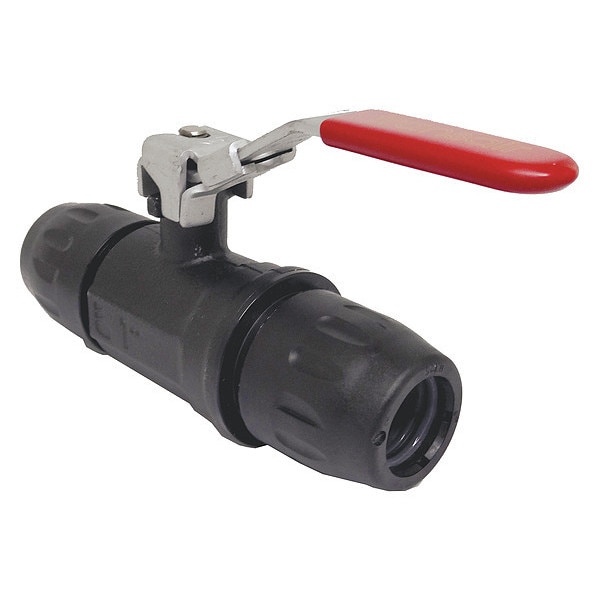

Transair Tubing Fitting, For Tubing O.D.1 25.00mm 494D21 - main

Tubing Fitting, For Tubing O.D.1 25.00mm

  • Mfr # 494D21

  • Zoro # G2148239

product price:  $214.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
1"
Body Material
Plated Brass
Fitting Size (NPT)
1 in
Material
Plated Brass
For Tubing O.D. 2
25 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
494D21
Zoro #
G2148239
UPC #
-
Country of Origin
France

Dimensions

Pipe Size
1"
Fitting Size (NPT)
1 in
Overall Length
6.1 in
Fitting Side A Tube Outer Diameter
1 in
Fitting Side B Tube Outer Diameter
1 in
Connection Size - Side 2
1/2 in
Connection Size - Side 1
1 in

Details

Body Material
Plated Brass
Item
Lockable Ball Valve
Material
Plated Brass
For Tubing O.D. 2
25 mm
For Tubing O.D. 1
25 mm
Type
Ball Valve
Color
Black
Standards
ASME B31.1, ASME B31.3, ATEX Directive 2014/34/EU, CE Directive 2014/68/EU, EN 13501-1, EN 13501-2, IATF 16949 Version 2016 Certified, ISO 14001, ISO 8573, ISO 9001 Version 2015, Labs Free Compliance, Oil Free Certificate, Qualicoat Certification, REACH
Fitting Material
Brass
Specific Fitting Shape
Ball Valve
Application
Air, Inert Gases, Vacuum
Fitting Side B Connection Type
Push-to-Connect
Vacuum Rating
29.6 inHg
Compatible Tube Material
Aluminum
Maximum Operating Temperature
140 Degrees F
Maximum Operating Pressure
232 psi
Minimum Operating Temperature
4 Degrees F
System of Measurement
Imperial
Fitting Side A Connection Type
Push-to-Connect
Resistance Properties
Chemical-Resistant, Corrosion-Resistant
For Media
Air, Gases
Operating Temperature - Maximum
140 Degrees F
Operating Temperature - Minimum
4 Degrees F
Color - Valve Body
Black
Maximum Pressure - Operating
232 psi
Valve Series
Transair
Vacuum Service Rating
29.6 in Hg
Connection Type - Side 1
Push
Connection Type - Side 2
Push

Description

Lockable Ball Valve, Body Material Brass, For Media Air, Gases, Maximum Pressure - Operating 232 psi, Vacuum Service Rating 29.6 in Hg, Connection Size - Side 1 1 in, Connection Size - Side 2 1/2 in, Connection Type - Side 1 Push, Connection Type - Side 2 Push, Operating Temperature - Minimum 4 Degrees F

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
