Gast

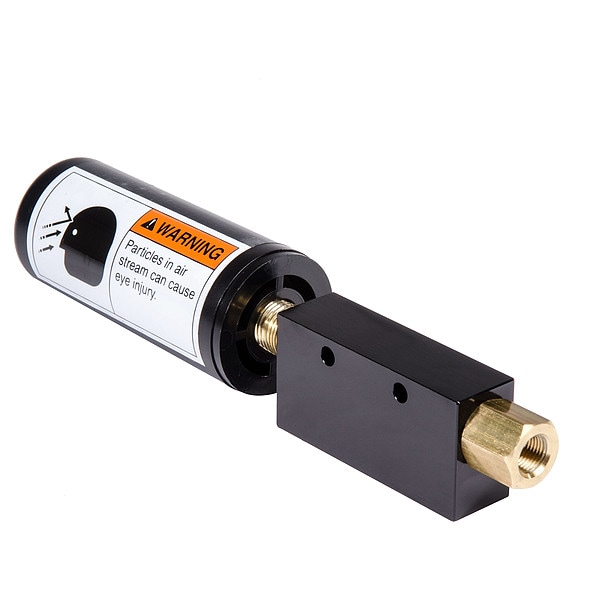

Vacuum Ejector, Single Unit, 30 to 75 PSI

product price: $103.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pressure Port Size 1/8 in
  • Vacuum Port Size 1/4 in
  • Exhaust Type Muffler
  • Vacuum Flow Rate 62.0 lpm
  • Vacuum Pressure Range 0 to -91 KPA
See all product information

Product Information

Dimensions

Pressure Port Size 1/8 in
Vacuum Port Size 1/4 in
Width 43 mm
Orifice Dia. 1.5 mm
Height 32 mm
Length 187 mm
Overall Length 187 mm
Overall Width 43 mm

Details

Exhaust Type Muffler
Vacuum Flow Rate 62.0 lpm
Vacuum Pressure Range 0 to -91 KPA
Weight 170 g
Vacuum Pressure @ 40 PSI -75 kPa
Vacuum Pressure @ 75 PSI -91 kPa
Item Vacuum Ejector
Ejector Type Single Stage Venturi
Includes Muffler
Temp. Range 0 Degrees to 52 Degrees C
Supply Pressure Range 30 to 75 psi
Pressure Port Gender Female
Maximum Supply Pressure 75 psi
Maximum Operating Temperature 52 Degrees C
Maximum Flow Rate 62 lpm
Vacuum Port Gender Female
Vacuum Port Type NPT
Pressure Port Type NPT

Description

Item Vacuum Ejector, Includes Muffler, Maximum Flow Rate 62 lpm, Maximum Operating Temperature 52 Degrees C, Maximum Supply Pressure 75 psi, Overall Length 187 mm, Overall Width 43 mm, Pressure Port Gender Female, Pressure Port Size 1/8 in, Pressure Port Type NPT, Vacuum Port Gender Female, Vacuum Port Size 1/4 in, Vacuum Port Type NPT, Vacuum Pressure @ 40 PSI -75 kPa, Vacuum Pressure @ 75 PSI -91 kPa, Weight 170 g
