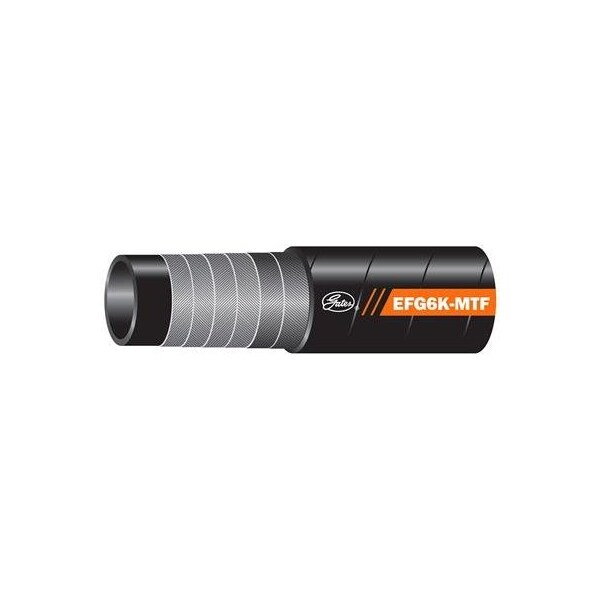

EFG6K Spiral Wire Hose - SAE 100R15 - MegaTuff Cover
Mfr # 85474
Zoro # G214901800
product price:Â
$
2,522.99
/pr
Free Shipping & Returns
Key Features
Type
Hydraulic Hose
Cover Material
Synthetic Rubber - Neoprene - Type A - Color Coded Layline
Temp. Range (F)
-40 Deg. F to +250 Deg. F
Dash Size
12
Length (Ft.)
25ft
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 85474
- Zoro #
- G214901800
- UPC #
- 72053508048
- Country of Origin
- United States
Dimensions
- Dash Size
- 12
- Length (Ft.)
- 25ft
- Min. Bend Radius (In.)
- 4.7 in
Details
- Type
- Hydraulic Hose
- Cover Material
- Synthetic Rubber - Neoprene - Type A - Color Coded Layline
- Temp. Range (F)
- -40 Deg. F to +250 Deg. F
Description
EFG6K is recommended for extremely high-pressure, high-impulse applications such as hydrostatic transmissions. Compatible with biodegradable hydraulic fluids like polyolester, polyglycol and vegetable oil as well as standard petroleum-based fluids.
For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral MAX Pressure Couplings [G23 and G24 Series] and Stainless Steel Spiral Couplings [G18 Series]; Tested to industry-leading 1,000,000 impulse cycles; MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance; Meets Flame Resistance Acceptance Designation MSHA 2G; Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
For use with GlobalSpiral Couplings [G20 Series], GlobalSpiral MAX Pressure Couplings [G23 and G24 Series] and Stainless Steel Spiral Couplings [G18 Series]; Tested to industry-leading 1,000,000 impulse cycles; MegaTuff hose lasts up to 300 times longer than standard hose during hose-to-hose and hose-to-metal abrasion tests per ISO 6945 and offers superior ozone and weathering resistance; Meets Flame Resistance Acceptance Designation MSHA 2G; Temperature Range: -40 Deg. F to +250 Deg. F (-40 Deg. C to +121 Deg. C)
