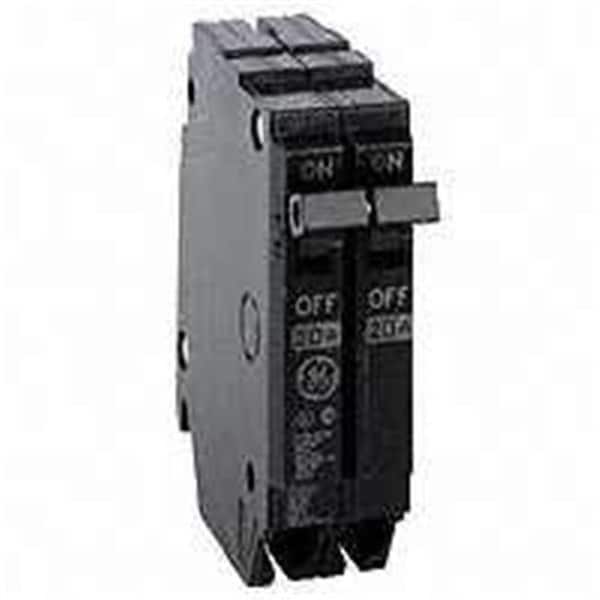

GE Electrical THQP220 20A 2 Pole 0.5 in. Circuit Breaker
Mfr # 6122477
Zoro # G303920989
product price:Â $41.75
/eaKey Features
Series
THQP
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Toggle
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
6122477
Zoro #
G303920989
UPC #
783164085723
Country of Origin
United States
Dimensions
Frame Size
100A/THQ
Width
1 in
Depth
2-3/8 in
Height
3-9/32 in
Details
Item
Circuit Breaker
Series
THQP
Amps
20A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Toggle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120/240V AC
Trip Type
Thermal Magnetic
Instantaneous Trip
Fixed
Terminal Connection
Lugs
DC Voltage Rating
Not Rated
Description
Copper-to-copper connections, calibrated for optimum trip performance, heat resistant thermoset cases and covers, cemented calibration screw. Nearly identical to type thql with the same design and performance, yet only taking up 1/2 the space. 1/2 in. Per pole. 15 to 25 amp 14 - 8 cu or 12 - 8 al awg wire, 30 to 50 amp 8 - 4 cu or 8 - 2 al awg wire.
Features- 120/240 volt
- 10,000 air.
- Plug-in - Double pole
- Type thql - Common trip
- Factory installed lugs
- Size - 0.5 in.
- Amp rating - 20
- Dimension - 3-9/32 h x 1/2 w x 2-3/8 d in.
- Item weight - 0.43 lbs.
