Ge Lighting Ballast, 1000w HPS S52 5-Tap GES1000ML5AA5-5 - main

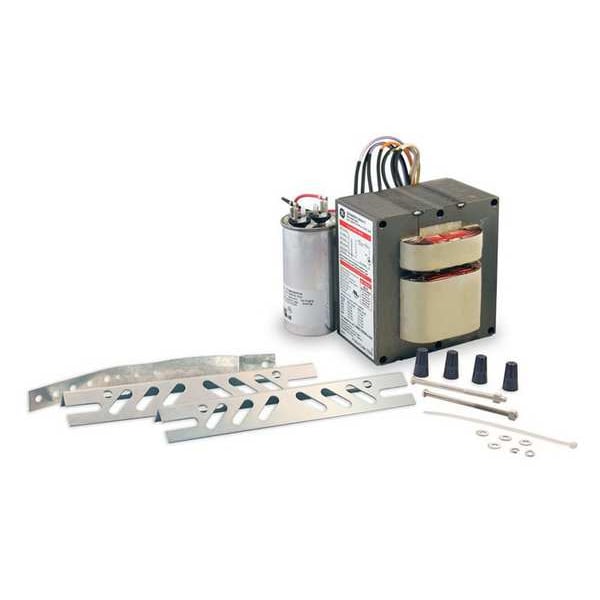

Ballast, 1000w HPS S52 5-Tap

  • Mfr # GES1000ML5AA5-5

  • Zoro # G0638316

product price:  $243.99
/ea
Free Shipping & Returns

Key Features

Ballast Lamp Type
High Pressure Sodium
Input Voltage
120/208/240/277/480V AC
Ballast Voltage
120/208/240/277/480
Ballast Start Type
Pulse
Ballast Item
HID Ballast Kit
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GES1000ML5AA5-5
Zoro #
G0638316
UPC #
-
Country of Origin
China

Dimensions

Dimension B
2 3/4 in
Dimension A
2 3/4 in
Width
4 1/4 in
Height
4 in
Length
6 in

Details

Ballast Lamp Type
High Pressure Sodium
Item
HID Ballast Kit
Input Voltage
120/208/240/277/480V AC
Ballast Voltage
120/208/240/277/480
Ballast Start Type
Pulse
Ballast Item
HID Ballast Kit
Ballast Max. Lamp Watts
1000
Ballast Type
Magnetic
Input Watts
1,000 W
Ballast Family
HID Magnetic
Thermal Protection
No
Insulation Class
H
Hz
60
Operating Amps @ 208V
5.5 A
ANSI Code
S52
Min. Starting Temp.
-40 Degrees F
Operating Amps @ 120V
9.5 A
Operating Amps @ 240V
4.7 A
Figure Number
PC3
Number of Lamps
1
Operating Amps @ 277V
4.1 A
Includes
Capacitor, Coil, Core, Ignitor
Ballast Lamp Watts
1000
Standards
cUL Listed, UL Listed
Ballast Factor
1
Fixture Ballast Type
Core and Coil
Ballast Bulb Type
High Pressure Sodium
Housing Material
Steel
Brand and Series
GE Current
Max. Bulb Watts
1,000 W
Number of Bulbs Supported
1
Frequency
60 Hz
Min. Bulb Watts
1,000 W
Operating Amps @ 480V
2.4 A
Starter Required
YES
For Use With
High Pressure Sodium HID Bulbs

Description

GE Current, Magnetic, HID Ballast Kit, Ballast Start Type Pulse, ANSI Code S52, High Pressure Sodium Ballast Bulb Type, Number of Bulbs Supported 1, Max. Bulb Watts 1,000 W, Input Voltage 120/208/240/277/480V AC, Input Watts 1,000 W, -40 Degrees F Min. Starting Temp., Ballast Factor 1, Frequency 60 Hz
