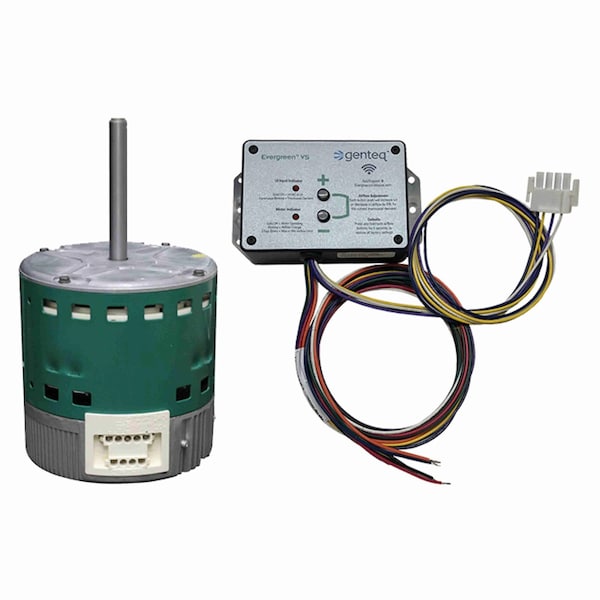

Genteq Direct Drive Blower Motor, 1/2 hp 6505VUI - main

Direct Drive Blower Motor, 1/2 hp

  • Mfr # 6505VUI

  • Zoro # G311935029

product price:  $478.99
/ea
Free Shipping & Returns

Key Features

Motor Design
ECM
HP
1/2
RPM Range
1,001-1,100
Nameplate RPM
1,050
Voltage
120/240V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
6505VUI
Zoro #
G311935029
UPC #
818508028927
Country of Origin
Mexico

Dimensions

Length Less Shaft
6 3/16 in
Manufacturers Warranty Length
2 yr
Shaft Length
5 in
Overall Length
11 3/16 in
Shaft Dia.
1/2 in

Details

Item
Direct Drive Blower Motor
Motor Design
ECM
HP
1/2
RPM Range
1,001-1,100
Nameplate RPM
1,050
Voltage
120/240V AC
Frame
48
Motor Mounting Type
Band
Phase
Single
Motor Enclosure Design
Open Air-Over
Ins. Class
B
Standards
Tested to CSA, IEC, and CE standards, UL (E306123), UL (E338178)
Full Load Amps
7.7/4.3 A
Motor Shaft Rotation
CW/CCW
Motor Sub Application
General Purpose
No. of Speeds
1
Nominal Efficiency
80 %
Motor Bearings
Ball
Motor Thermal Protection
None
Motor Service Factor
1
Hz
60 Hz
Motor Mounting Position
Vertical Shaft Down
Duty
Continuous
Motor Application
HVAC/R
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
120V AC, 240V AC
Motor Shaft Design
Flat
Removable Base
Permanently Lubricated Bearings
Duty Cycle
Continuous
Blower Stages
5
ECM Motor Type
Constant Torque

Description

Fan and Blower Motors
