Shop GOULDS

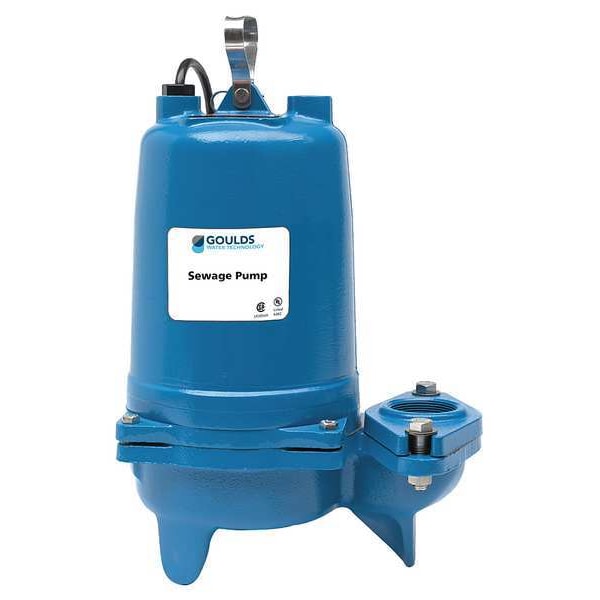

3/4 HP 2" Manual Submersible Sewage Pump 230V

  • Mfr # WS0712BHF

  • Zoro # G2255337

product price:
$
1,755.99
/ea
Free Shipping & Returns

Key Features

HP
3/4
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
303 Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
WS0712BHF
Zoro #
G2255337
UPC #
-
Country of Origin
United States
HP
3/4
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
303 Stainless Steel
Flow Rate @ 10 Ft. of Head
140 gpm
Max. Head
38 ft
Impeller Material
Cast Iron
GPM of Water @ 15 Ft. of Head
120
Item
Sewage Ejector Pump
Bearing Type
Ball
GPM of Water @ 10 Ft. of Head
140
Max. Liquid Temp.
104 Degrees F (Continuous), 140 Degrees F (Intermittent)
Switch Type - Pumps
No Switch Included
Voltage
230
Input Phase AC
1
Voltage - Pumps
240VAC
GPM of Water @ 25 Ft. of Head
67
Phase
Single
Switch Type
None
Shaft Seal
Silicon Carbide
Shaft Seal Material - Pumps
Silicone Carbide
Max. Head - Pumps
38 ft.
Amps
10.00 A
GPM of Water @ 20 Ft. of Head
99
Housing Material
Cast iron
Item - Sewage Pumps
Submersible Sewage Pump
Agency Compliance
CSA Certified, UL Listed
Impeller Material - Pumps
Cast Iron
Amps - Pumps
10.00
Motor Type
Oil Filled
Pump Type
Manual
Motor RPM
3450
Pump Body Material
Cast Iron
Discharge NPT
2"
Thermal Protection
Yes
GPM of Water @ 30 Ft. of Head
45
Discharge Standard
NPT
Flow Rate @ 15 Ft. of Head
120 gpm
Discharge
2 in FNPT
Duty Cycle
Continuous
Switch Electrical Connection
No Switch Included
Discharge Gender
Female
RPM
3,450 RPM
Flow Rate @ 20 Ft. of Head
99 gpm
Rated Voltage
230V AC
Type
Manual
Shaft Seal Material
Silicon
Standards
CSA Certified, UL Listed
For Media Type
Sewage Water
Shaft Seal Type
Single Mechanical
Horsepower
3/4 hp
Frequency
60 Hz
Feet of Head - Maximum
38 ft
Volute Material
Cast Iron
Current
10.00 A
Discharge Orientation
Vertical
Flow Rate @ 10 ft of Head
140 gpm
Power Source
Corded Electric
Series
3887BHF
Rotation Speed - Maximum
3,450 RPM
Liquid Temperature - Maximum
104 Degrees F
Motor Housing Material
Cast Iron
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Sewage Ejector Pump, HP 3/4, Rated Voltage 230V AC, Phase - Pumps 1, Amps 10.00 A, Motor Type Oil Filled, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Silicone Carbide, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, On Point Not Applicable, Off Point Not Applicable, Flow Rate @ 10 Ft. of Head 140 gpm, Flow Rate @ 15 Ft. of Head 120 gpm, Flow Rate @ 20 Ft. of Head 99 gpm, Max. Diameter Solids 2 in, Body Dia. 12 1/2 in
