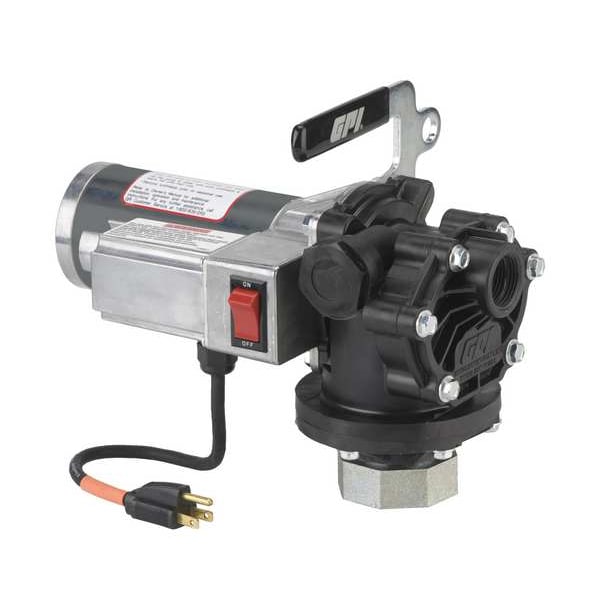

Gpi Drum Pump, 115VAC, 1/4 HP, 50/60 Hz PA-200H-2UR - main

Drum Pump, 115VAC, 1/4 HP, 50/60 Hz

  • Mfr # PA-200H-2UR

  • Zoro # G3141783

product price: $1,117.99
/ea
Free Shipping & Returns

Key Features

For Use With
GPI 118003-2, PA-200H-2UR
Includes
3 Prong Power Pig Tail
Max. Viscosity
450 cps
Motor Type
Electric AC
Power Source
Electric
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PA-200H-2UR
Zoro #
G3141783
UPC #
031401000405
Country of Origin
United States

Dimensions

Outlet Size
1" NPT
Discharge Tube Outlet ID Size
1"
Inlet Size
1" NPT
Overall Length
11 in
Manufacturers Warranty Length
2 yr.
For Container Size
55 gal, 275 gal, 330 gal
Height Above Container
11 in

Details

For Use With
GPI 118003-2, PA-200H-2UR
Item
Electric Operated Drum Pump
Includes
3 Prong Power Pig Tail
Max. Viscosity
450 cps
Motor Type
Electric AC
Power Source
Electric
Wetted Materials
316 Stainless Steel, PBT Polyester
Voltage
115VAC
Motor Enclosure
TENV
Metered
No
Max. Flow GPM
8-12 gpm
Motor RPM
3,250 RPM
GPM
8
HP
1/4
Max. Liquid Temp.
120 Degrees F
RPM
3250
Max. GPM for Oil
8
Adapter Material
Aluminum
Standards
CSA Certified
Pump Body Material
Polyethylene
Max. Temp.
120 Degrees F
Application
Agricultural Chemicals Transfer
Max. Pressure
6 psi
Type
Agricultural Chemical
Gasket Material
Fluorocarbon
Agency Compliance
CSA
DEF Compatible
No
Hz
50/60
Max. Head
18 ft.
Suction Tube Type
Plastic Adjustable
Housing Material
Polyethylene
Adapter Type
Spin Collar
Max. GPM for Water
8
For Media Type
Automatic Transmission Fluid, Brake Fluid, Fungicides, Herbicides, Hydraulic Oil, Motor Oil, Pesticides, Stoddard Solvent, Water, Windshield Washer Fluid
Duty Cycle
Intermittent
Includes Discharge Hose
No
Min. Fluid Temp.
-20 Degrees F
Diesel Exhaust Fluid Compatible
No
Self-Priming
Yes
Pump Connection Type
NPT
Includes Bung Adapter
No
Frequency (Hz)
50/60 Hz
Max. Flow Rate
8 gpm
Runs Dry
Yes
Features
115 V(ac), 2 in Union Ring, Aluminum spin collar adapter, Chemical corrosion resistance, Chemical transfer pump, Fluorocarbon gasket, Lightweight, Molded plastic, Three-prong power connector pigtail.
Full Load Amps
3.0 A
Seal Material
NBR
Max. Fluid Temp.
120 Degrees F
Discharge Connection Type
NPT
Number of Phases
1
Series
Chemical
Pump Connection OD
1 1/4 in
Food Grade
No
Max. Oil Flow
8 gpm
Discharge Tube Outlet ID
1 in
Variable Speed
No
Housing Material - Pumps
Polyethylene
Max. Head Pressure
16 psi
Motor HP
1/4 hp
Not Recommended Chemicals
Ammonia (Liquids), Ammonium Hydroxide, Anhydrous Ammonia, Biodiesel, DEF, Diesel Fuel, E85, Fertilizers, Formaldehyde, Formaldehyde 40%, Gasoline, Heptane, Hexane, Hydrazine, Kerosene, Lacquer Thinners, Lithium Grease, Methyl Chloride, Naphtha, Paint, Paint Thinner, Potassium Hydroxide (50%), Salt Water, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sodium Hypochlorite/Bleach (to 20%), Toluene, Trichlorethylene (50%), Turpentine, Xylene
Compatible Chemicals
Automatic Transmission Fluid, Brake Fluid, Deionized Water, Fresh Water, Fungicides, Herbicides, Hydraulic Oils (Petroleum), Hydraulic Oils (Synthetic), Motor Oil, Pesticides, Stoddard Solvent (Mineral Spirits), Windshield Washer Fluid
Includes Suction Tube
Yes
Max. Head - Pumps
18 ft
For Container Type
Drum, Tote
Discharge Tube Outlet OD
1 in
Pump Connection ID
1 in
Includes Nozzle
No
Gear Lube
NT
Grease
NT
Rated Voltage
115V AC
Max. Outlet Pressure
6 psi
Explosion Proof
No

Description

Electric Drum Pump, Max. Head Pressure 16 psi, Max. Oil Flow 8 gpm, Max. Outlet Pressure 6 psi, For Use With GPI 118003-2, PA-200H-2UR, Rated Voltage 115 V AC, Plug Type Not Applicable, Pump Connection ID 1 in, Hose Length 12 ft, Suction Tube Length Not Applicable, Includes Bung Adapter Yes, Runs Dry Yes, Nozzle Operation Manual, Frequency (Hz) 50/60 Hz, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose No, Self-Priming Yes
