Gpi Fuel Transfer Pump, 12V DC, 15 gpm Max. Flow Rate , 1/5 HP, Cast Aluminum, 1 in NPT Inlet M-150S-MU - main

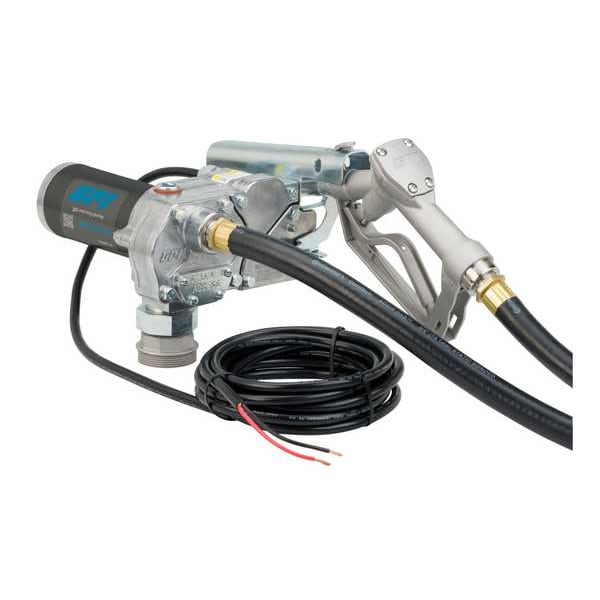

Fuel Transfer Pump, 12V DC, 15 gpm Max. Flow Rate , 1/5 HP, Cast Aluminum, 1 in NPT Inlet

  • Mfr # M-150S-MU

  • Zoro # G0555786

product price:  $479.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
HP
1/5
Housing Material
Cast Aluminum
GPM
15 gpm
Inlet Size
1 in NPT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
M-150S-MU
Zoro #
G0555786
UPC #
031401150605
Country of Origin
United States

Dimensions

Inlet Size
1 in NPT
Suction Tube Length
40 in
Overall Height
8 in
Overall Length
12 in
Hose Dia.
3/4 in
Overall Width
10 in
Cord Length
18 ft
Manufacturers Warranty Length
2 yr
Power Cord Length
18 ft
Outlet Size
3/4 in NPT
Hose Length
12 ft
Pump Mount Size
2 in
For Container Size
10 gal, 500 gal
Height Above Container
11 in
Bung Connection Dia.
2 in
Hose Outside Dia.
3/4 in

Details

Voltage
12V DC
HP
1/5
Housing Material
Cast Aluminum
GPM
15 gpm
Seal Material
Buna-N
RPM
1900
Pump Design
Gear
Self-Priming
Yes
Seal Type
Lip
Max. Viscosity
50 SUS
Item
Fuel Transfer Pump
Features
Self priming, Powder-coated aluminum body,telescoping suction pipe (15in - 40in), Factory installed power Cord, Easy installation spin collar mount, Explosion Proof Motor, Thermal Overload Protection
Adapter Material
Aluminum
Motor Enclosure
Explosion Proof
Standards
Class I Div 2, cULus Listed, IECEx/ATEX Zone 1
Transfer Pump Application
Stationary Installations, Stationary Locations in Fleet
Metered
No
Nozzle Material
Aluminum
Agency Compliance
CE, Class I Div 2, cULus
Duty Cycle
30 Minutes On/30 Minutes Off
Bypass Valve
Yes
Nozzle Type
Manual
For Use With
Diesel, Gasoline, Kerosene, E15
Bearing Type
Sleeve
Compatible Fluids
Diesel, Gasoline, Kerosene, E15
Includes
Manual Unleaded Nozzle, Dispensing Hose, Factory-Installed Power Cord, Fuse Assembly, Lockable Nozzle Holder, Pump with Spin Collar, Tank Adapter, Telescoping Suction Pipe
Pressure Range
15 psi
Motor RPM
1,900 RPM
Housing Material - Pumps
Aluminum
Max. Head - Pumps
5 1/2 ft
Min. Fluid Temp.
-20 Degrees F
Diesel Exhaust Fluid Compatible
No
Suction Tube Material
Polypropylene
Explosion Proof
Yes
Hose Tube Material
Nitrile
Compatible Chemicals
Diesel, Gasoline, Kerosene
Includes Nozzle
Yes
Max. Outlet Pressure
15 psi
Max. Fluid Temp.
125 Degrees F
Includes Spout
No
Number of Phases
1
Variable Speed
No
Nozzle Operation
Manual
Max. Flow Rate
15 gpm
Includes Suction Tube
Yes
Food Grade
No
Housing Finish
Powder Coated
Power Source
Electric
Rated Voltage
12V DC
Discharge Connection Type
FNPT
Runs Dry
No
Nozzle Fluid Compatibility
Diesel
Adapter Connection Type
MNPT
Includes Bung Adapter
Yes
Thermal Protection
Yes
Frequency (Hz)
60 Hz
Motor HP
1/5 hp
Spout Material
Aluminum
Mount Type
Bung
Pump Connection Type
FNPT
Includes Discharge Hose
Yes
Hose Cover Material
Nitrile
Full Load Amps
25.0 A
Suction Tube OD
1 in
For Media Type
Diesel, Gasoline, Kerosene

Description

Electric Drum Pump, Max. Outlet Pressure 15 psi, For Use With Diesel, Gasoline, Kerosene, E15, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD 1 in, Hose Length 12 ft, Suction Tube Length 40 in, Cord Length 18 ft, Includes Bung Adapter Yes, Runs Dry No, Nozzle Operation Manual, Thermal Protection Yes, Frequency (Hz) 60 Hz, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
