Shop GPI

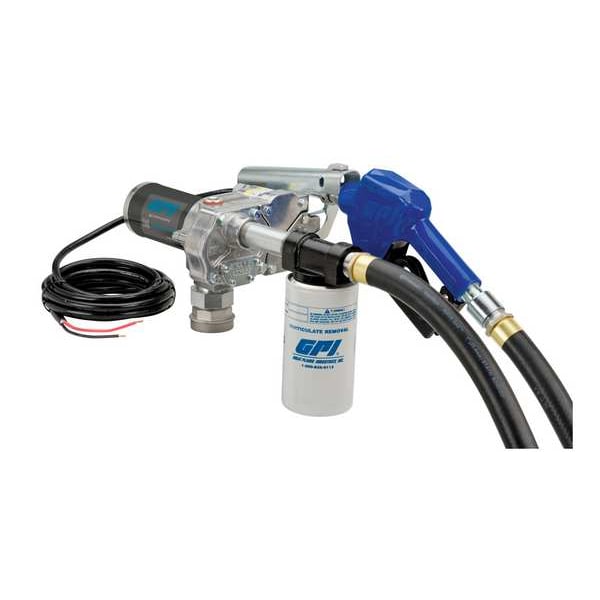

Fuel Transfer Pump, 12V DC, 18 gpm Max. Flow Rate , 1/4 HP, Cast Aluminum, 1 in NPT Inlet

  • Mfr # M-180S-AU W/FILTER

  • Zoro # G8086898

product price:  $669.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
HP
1/4
Housing Material
Aluminum
GPM
18 gpm
Inlet Size
1 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M-180S-AU W/FILTER
Zoro #
G8086898
UPC #
031401000290
Country of Origin
United States

Dimensions

Inlet Size
1 in NPT
Hose Length
12 ft
Overall Length
12 in
Outlet Size
3/4 in NPT
Cord Length
18 ft
Overall Height
8 in
Hose Dia.
3/4 in
Power Cord Length
18 ft
Overall Width
10 in
Manufacturers Warranty Length
2 yr
Pump Mount Size
2 in
Suction Tube Length
40 in
Hose Outside Dia.
3/4 in
Bung Connection Dia.
2 in
For Container Size
10 gal, 500 gal
Height Above Container
11 in
Hose Outside Diameter
3/4 in
Adapter Connection Diameter
2 in
Wire Rope Length
12 in

Details

Voltage
12V DC
HP
1/4
Housing Material
Aluminum
GPM
18 gpm
Seal Material
Buna-N
RPM
2000
Pump Design
Gear
Self-Priming
Yes
Seal Type
Lip
Max. Viscosity
50 SUS
Item
Electric Drum Pump
Metered
No
Compatible Fluids
Diesel, Gasoline, Kerosene, E15
For Use With
Diesel, Gasoline, Kerosene, E15
Includes
Dispensing Hose, Power Cord, Fuse Assembly, Installation Kit, Tank Adapter
Transfer Pump Application
Stationary Installations, Stationary Locations in Fleet
Adapter Material
Aluminum
Nozzle Material
Aluminum
Duty Cycle
30 Minutes On/30 Minutes Off
Motor Enclosure
Explosion Proof
Pressure Range
15 psi
Features
Self priming, Powder-coated aluminum body,telescoping suction pipe (15in - 40in), Factory installed power Cord, Easy installation spin collar mount, Explosion Proof Motor, Thermal Overload Protection
Nozzle Type
Automatic
Housing Material - Pumps
Aluminum
Bypass Valve
Yes
Standards
CE, cULus
Agency Compliance
CE, Class I Div 2, cULus
Bearing Type
Sleeve
Motor RPM
2,000 RPM
Max. Head - Pumps
4 4/5 ft
Explosion Proof
Yes
Mount Type
Bung
Motor HP
1/4 hp
Suction Tube Material
Polypropylene
Power Source
Corded Electric
Pump Connection Type
FNPT
Compatible Chemicals
Diesel, Gasoline, Kerosene
For Media Type
Diesel, Gasoline, Kerosene
Discharge Connection Type
FNPT
Max. Fluid Temp.
125 Degrees F
Suction Tube OD
1 in
Nozzle Operation
Automatic
Min. Fluid Temp.
-20 Degrees F
Spout Material
Aluminum
Diesel Exhaust Fluid Compatible
No
Full Load Amps
30.0 A
Hose Tube Material
Nitrile
Rated Voltage
12 V DC
Frequency (Hz)
60 Hz
Number of Phases
1
Includes Nozzle
Yes
Runs Dry
No
Housing Finish
Powder Coated
Hose Cover Material
Nitrile
Max. Outlet Pressure
15 psi
Filter Included
Particulate Filter
Variable Speed
No
Includes Spout
No
Includes Discharge Hose
Yes
Includes Bung Adapter
Yes
Food Grade
No
Includes Suction Tube
Yes
Nozzle Fluid Compatibility
Diesel, Gasoline
Thermal Protection
Yes
Adapter Connection Type
MNPT
Max. Flow Rate
18 gpm
Meter Type Included
No Meter Included
Chemical Compatibility
Diesel, Gasoline, Kerosene
Maximum Outlet Pressure
15 psi
Pump Connection ID
1 in
Frequency
60 Hz
Pump Technology
Gear
Maximum Head
4 13/16 ft
Full Load Current
30 A
Maximum Head Pressure
12 psi
Minimum Fluid Temperature
-20 Degrees F
Maximum Viscosity
50 SUS
Pump Connection OD
1 in
Maximum Flow Rate
18 gpm
Motor Speed
2,000 RPM
Hazardous Location Class
Class I Division 2 Group D
Adapter Connection Standard
MNPT
Phase
Single
Maximum Fluid Temperature
125 Degrees F
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Motor Horsepower
1/4 hp
For Container Type
Tank
Includes Follower Plate
No Follower Plate Included
Static Protection
Grounding Line Included
Power Source - TS Only
Corded Electric

Description

Electric Drum Pump, Max. Outlet Pressure 15 psi, For Use With Diesel, Gasoline, Kerosene, E15, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD 1 in, Hose Length 12 ft, Suction Tube Length 40 in, Cord Length 18 ft, Includes Bung Adapter Yes, Runs Dry No, Nozzle Operation Automatic, Thermal Protection Yes, Frequency (Hz) 60 Hz, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes

Restrictions

WARNING: Cancer For more information go to www.P65Warnings.ca.gov
This is a restricted item in the USA. It cannot be used for potable water applications.
