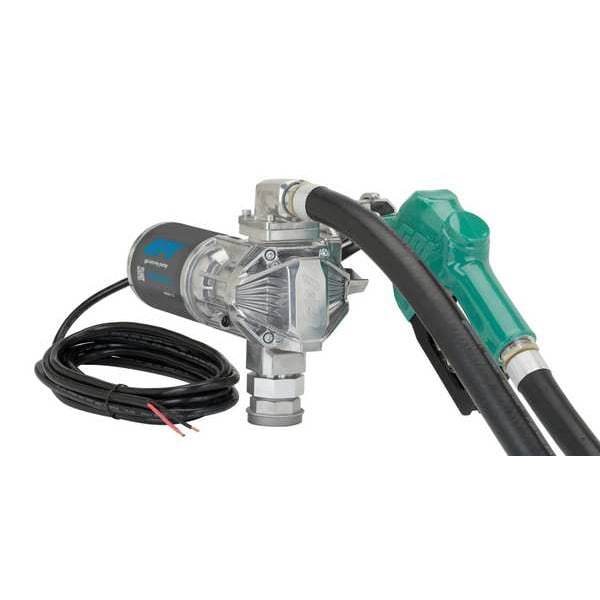

Fuel Transfer Pump, 12V DC, 20 gpm Max. Flow Rate , 3/8 HP, Cast Aluminum, 1 in NPT Inlet

  • Mfr # G20-012AD
  • Zoro # G1950948
product price:
$
739.99
/ea
Free Shipping & Returns

Key Features

Voltage
12V DC
HP
3/8
Housing Material
Aluminum
GPM
20 gpm
Inlet Size
1 in NPT
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
G20-012AD
Zoro #
G1950948
UPC #
031401007183
Country of Origin
United States

Dimensions

Inlet Size
1 in NPT
Pump Mount Size
2 in
Suction Tube Length
40 in
Hose Length
14 ft
Overall Length
12 in
Power Cord Length
18 ft
Overall Width
10 in
Outlet Size
1 in NPT
Overall Height
8 in
Hose Dia.
1 in
Manufacturers Warranty Length
Limited Lifetime
Cord Length
18 ft
Bung Connection Dia.
2 in
For Container Size
10 gal, 1,000 gal
Hose Outside Dia.
1 in
Height Above Container
10 in
Hose Outside Diameter
1 in
Adapter Connection Diameter
2 in
Wire Rope Length
12 in
Length
12 in
Fits Chest Size
Self priming, Powder-coated aluminum body,telescoping suction pipe (15in - 40in), Factory installed power Cord, Easy installation spin collar mount, Explosion Proof Motor, Thermal Overload Protection

Details

Voltage
12V DC
HP
3/8
Housing Material
Aluminum
GPM
20 gpm
Seal Material
Buna-N
RPM
2000
Pump Design
Gear
Self-Priming
Yes
Seal Type
Lip
Max. Viscosity
50 SUS
Item
Electric Drum Pump
Housing Material - Pumps
Aluminum
Motor Enclosure
Explosion Proof
Nozzle Material
Aluminum
Standards
cULus
Includes
Dispensing Hose, Power Cord, Fuse Assembly, Modular Fitting, Tank Adapter
For Use With
Diesel, Gasoline, Kerosene, E15
Bypass Valve
Yes
Bearing Type
Sleeve
Adapter Material
Aluminum
Compatible Fluids
Diesel, Gasoline, Kerosene, E15
Pressure Range
16 psi
Transfer Pump Application
Stationary Installations, Stationary Locations in Fleet
Motor RPM
2,000 RPM
Duty Cycle
30 Minutes On/30 Minutes Off
Nozzle Type
Automatic
Metered
No
Features
Self priming, Powder-coated aluminum body,telescoping suction pipe (15in - 40in), Factory installed power Cord, Easy installation spin collar mount, Explosion Proof Motor, Thermal Overload Protection
Max. Head - Pumps
9 ft
Agency Compliance
Class I Div 2, cULus
Discharge Connection Type
FNPT
Food Grade
No
Full Load Amps
40.0 A
Frequency (Hz)
60 Hz
Includes Suction Tube
Yes
Adapter Connection Type
MNPT
Number of Phases
1
Nozzle Fluid Compatibility
Diesel, Gasoline
Includes Bung Adapter
Yes
Suction Tube Material
Polypropylene
Max. Flow Rate
20 gpm
Spout Material
Aluminum
Variable Speed
No
Rated Voltage
12 V DC
Thermal Protection
Yes
Nozzle Operation
Automatic
Hose Tube Material
Nitrile
Mount Type
Bung
Includes Discharge Hose
Yes
Max. Outlet Pressure
12 psi
Runs Dry
No
Pump Connection Type
FNPT
Housing Finish
Powder Coated
Max. Fluid Temp.
125 Degrees F
Motor HP
2/5 hp
Power Source
Corded Electric
Includes Nozzle
Yes
Diesel Exhaust Fluid Compatible
No
Explosion Proof
Yes
For Media Type
Diesel, Gasoline, Kerosene
Min. Fluid Temp.
-20 Degrees F
Suction Tube OD
1 in
Compatible Chemicals
Diesel, Gasoline, Kerosene
Includes Spout
No
Hose Cover Material
Nitrile
Full Load Current
40 A
Meter Type Included
No Meter Included
Maximum Head Pressure
12 psi
Maximum Fluid Temperature
125 Degrees F
For Container Type
Tank
Maximum Head
9 ft
Chemical Compatibility
Diesel, Gasoline, Kerosene
Frequency
60 Hz
Includes Follower Plate
No Follower Plate Included
Static Protection
Grounding Line Included
Maximum Outlet Pressure
12 psi
Pump Technology
Gear
Motor Horsepower
2/5 hp
Maximum Viscosity
50 SUS
Phase
Single
Pump Connection ID
1 in
Maximum Flow Rate
20 gpm
Hazardous Location Class
Class I Division 2 Group D
Minimum Fluid Temperature
-20 Degrees F
Adapter Connection Standard
MNPT
Motor Enclosure Design
Totally Enclosed Non-Ventilated
Pump Connection OD
1 in
Motor Speed
2,000 RPM
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Electric Drum Pump, Max. Outlet Pressure 12 psi, For Use With Diesel, Gasoline, Kerosene, E15, Rated Voltage 12 V DC, Plug Type Not Applicable, Pump Connection ID 1 in, Suction Tube OD 1 in, Hose Length 14 ft, Suction Tube Length 40 in, Cord Length 18 ft, Includes Bung Adapter Yes, Runs Dry No, Nozzle Operation Automatic, Thermal Protection Yes, Frequency (Hz) 60 Hz, Power Source Corded Electric, Variable Speed No, Includes Discharge Hose Yes, Self-Priming Yes
