Shop All Diaphragm Pumps
Graco

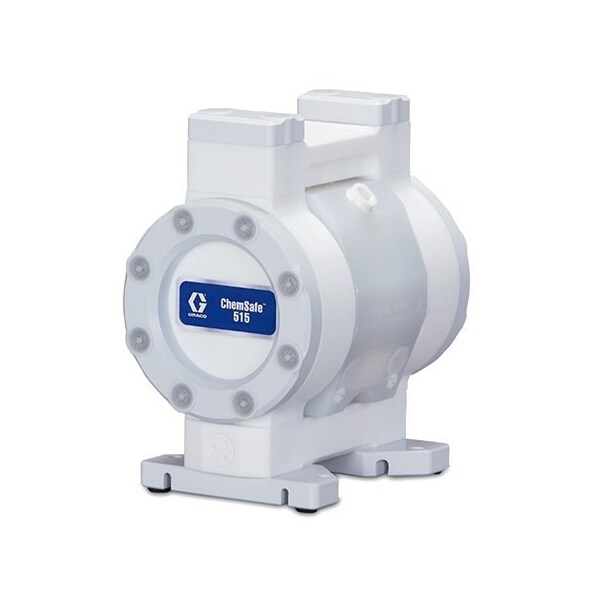

AODD Plastic Pump

product price: $4,992.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Pump Operation Type Air
  • Media Discharge Connection Size 1/2 in
  • Media Discharge Connection Type NPT
  • Manufacturers Warranty Length 2 yr
  • Flow Rate (Maximum) 16 gpm
See all product information

Product Information

  • Brand Graco
  • MFR # 24X425
  • Zoro # G309197569
  • UPC #
    00755652266860
  • Country of Origin United States
  • Category Diaphragm Pumps

Dimensions

Media Discharge Connection Size 1/2 in
Manufacturers Warranty Length 2 yr
Solid Diameter (Maximum) 0.16 in
Overall Height 10.9 in
Overall Length 9.2 in
Media Intake Connection Size 1/2 in
Air Intake Connection Size 1/4 in
Overall Width 6 in

Details

Pump Operation Type Air
Media Discharge Connection Type NPT
Flow Rate (Maximum) 16 gpm
Includes Balls, Diaphragms, Fluid Path, NPT Port, Seats
Media Intake Connection Type NPT
Flow Rate @ 100 psi 16 gpm
Flow Rate @ 40 psi 13 gpm
Operating Pressure (Maximum) 100 psi
Item AODD Plastic Pump
Air Intake Pressure (Maximum) 100 psi
Air Consumption (Maximum) 29 scfm
Standards CE
Diaphragm Material PTFE
Check Seat Material PTFE
Flow Rate @ 70 psi 16 gpm
Air Intake Connection Type NPT
Wetted Housing Material 316 Stainless Steel
Manifold Connection Single Port
Media Temperature (Maximum) 212 Degrees F
Series 515
Media Temperature (Minimum) 32 Degrees F
Media Discharge Location Center
Viscosity (Maximum) 5,000 cps
Feet of Head (Maximum) 230.7 ft
Pump Assembly Type Bolt
Valve Material PTFE
Non-Wetted Housing Material 304 Stainless Steel, Aluminum, Plastic, Polypropylene
Media Intake Location Side
Duty Cycle Continuous
Priming Self-Priming
Manifold Connection Type NPT
Series Family ChemSafe
For Use With Potable Systems Yes

Description

AODD Plastic Pump, Air Consumption (Maximum) 29 scfm, Air Intake Connection Size 1/4 in, Air Intake Connection Type NPT, Check Seat Material PTFE, Diaphragm Material PTFE, Feet of Head (Maximum) 230.7 ft, Flow Rate (Maximum) 16 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1/2 in, Media Discharge Connection Type NPT, Media Discharge Location Center, Media Intake Connection Size 1/2 in, Media Intake Connection Type NPT, Media Intake Location Side

Restrictions
