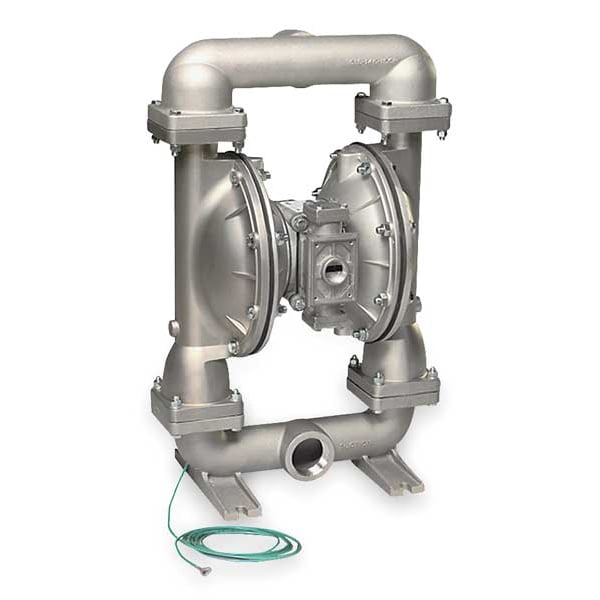

Double Diaphragm Pump, Aluminum, Natural Gas Operated, 150 GPM

Sandpiper Double Diaphragm Pump,  Aluminum,  Natural Gas Operated,  150 GPM G20B1ATTXNSX00.
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$3,874.51
  • Housing Material - Pumps: Aluminum
  • Diaphragm Material - Pumps: PTFE - Buna Backup
  • Max. Flow: 150 gpm
See full product details
This item ships free.
Total: $3,874.51

Sandpiper #G20B1ATTXNSX00. Specifications

  • Housing Material - Pumps: Aluminum
  • Diaphragm Material - Pumps: PTFE - Buna Backup
  • Max. Flow: 150 gpm
  • Item - Air Operated Pumps: Double Diaphragm Pump
  • Pump Operation Type: Natural Gas Operated
  • Max. Temp - Pumps: 220 Degrees F
  • Inlet/Outlet Size: 2 in
  • Connection Style: NPT
  • Air Inlet Size: 3/4 in FNPT
  • Agency Compliance: ATEX,ABS, CE, EAC
  • Body Material: Aluminum
  • Manifold Connection: Single
  • Check Seat Material: PTFE
  • Max. Flow GPM: 150
  • Diaphragm Material: PTFE - Buna Backup
  • Max. Operating Pressure: 100 psi
  • Height: 26 5/16 in
  • Width: 16 7/8 in
  • Max. Dia. Solids: 1/4 in
  • Self-Priming Dry: 20 ft
  • Item: Double Diaphragm Pump
  • Length: 12 19/32 in
  • Max. Temp.: 220 Degrees F
  • Valve Type: Ball
  • Self-Priming Wet: 25 ft
  • Ball Material: PTFE
  • Manufacturers Warranty Length: 1 yr
  • Operation Type: Natural Gas Operated
  • Length (Straight Wireway): 12 19/32 in
  • Country of Origin (subject to change): United States
Feedback Help us improve our product information

Description

Double Diaphragm Pump, Pump Operation Type Natural Gas Operated, Max. Flow 150 gpm, Max. Temp - Pumps 220 Degrees F, Housing Material - Pumps Aluminum, Inlet/Outlet Size 2 in, Connection Style NPT, Air Inlet Size 3/4 in FNPT, Diaphragm Material - Pumps PTFE - Buna Backup, Agency Compliance ATEX,ABS, CE, EAC, Valve Type Ball, Max. Flow GPM 150, Max. Operating Pressure 100 psi, Ball Material PTFE, Check Seat Material PTFE, Max. Dia. Solids 1/4 in, Manifold Connection Single, Length 12 19/32 in
