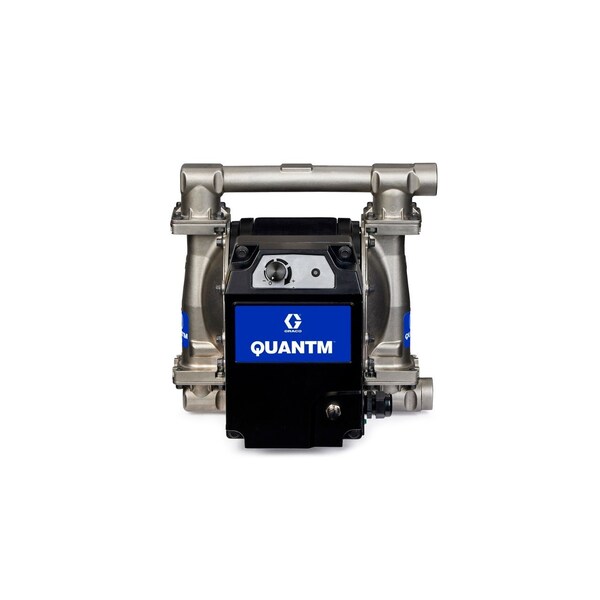

Electric Diaphragm Pump, 0.08 gal, 30 gpm

  • Mfr # TE30-0342

  • Zoro # G123359129

product price:
$
7,062.99
/ea
Free Shipping & Returns

Key Features

Media Discharge Connection Size
1 in
Hazardous Location Class
Class I Division 1
Valve Type
Ball
Fluid Chamber Assembly Type
Bolted
Viscosity (Maximum)
20,000 cps
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
TE30-0342
Zoro #
G123359129
UPC #
769946707854
Country of Origin
United States

Dimensions

Media Discharge Connection Size
1 in
Overall Width
13.25 in
Manufacturers Warranty Length
1 yr
Overall Length
13.9 in
Media Intake Connection Size
1 in
Overall Height
13.7 in
Solid Diameter (Maximum)
0.125 in
Wire Rope Length
13.9 in
Length
13.9 in

Details

Hazardous Location Class
Class I Division 1
Valve Type
Ball
Fluid Chamber Assembly Type
Bolted
Viscosity (Maximum)
20,000 cps
Standards
UL / CSA
Mounting Hardware Material
Plated Steel
Valve Material
PTFE
Diaphragm Reinforcement
Overmolded
Media Discharge Port Configuration
Side
Nameplate Voltage
100-120V AC
Item
Electric Diaphragm Pump
Media Temperature (Minimum)
-40 Degrees F
Manifold Connection Type
Flange
Displacement Per Stroke
0.08 gal
Operating Pressure (Maximum)
100 psi
Series
QUANTM I30 Industrial
Center Section Material
Aluminum
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Sodium Hydroxide 10%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Water
Includes Clean In Place Technology
No Clean In Place Included
Diaphragm Backing Material
EPDM
Media Discharge Connection Type
NPT
Check Seat Material
17-4PH Stainless Steel
Phase
Single
Pump Assembly Type
Bolt
Feet of Head (Maximum)
29 ft
Material Conductivity
Non-Conductive
Media Discharge Location
Top
Media Intake Connection Type
NPT
Wetted Body Material
316 Stainless Steel
Media Intake Location
Bottom
Media Intake Port Configuration
Side
Pump Operation Type
Electric
Diaphragm Base Material
PTFE
Flow Rate (Maximum)
30 gpm
Manifold Connection
Single Port
Media Temperature (Maximum)
180 Degrees F
Priming
Self-Priming

Description

Electric Diaphragm Pump,0.08 gal,30 gpm
