Graco

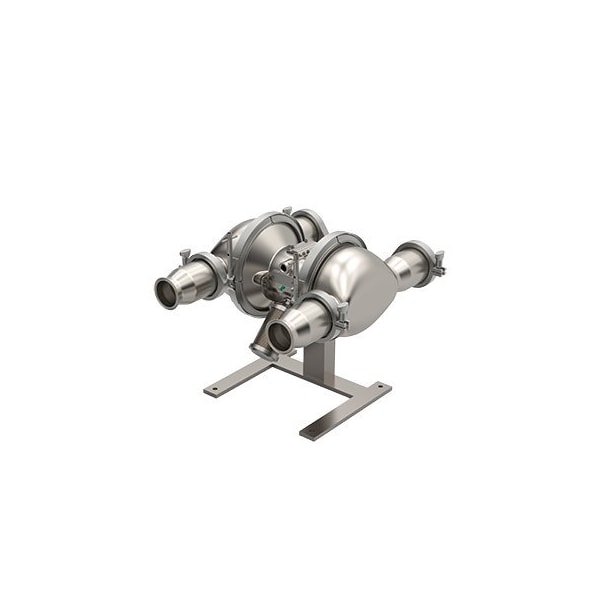

Large Particle AODD Pump

product price: $11,477.99
/ea
Item requires special delivery charges. A $240.00 per item surcharge will be applied.
Free 30-Day Returns

Key Features

  • Pump Operation Type Air
  • Series 3150
  • Standards ATEX, CE, FDA Compliant
  • Media Temperature (Maximum) 180 Degrees F
  • Check Seat Material PTFE, Stainless Steel
See all product information

Product Information

  • Brand Graco
  • MFR # SP3F.0080
  • Zoro # G909198508
  • UPC #
    00755652879503
  • Country of Origin United States
  • Category Diaphragm Pumps

Dimensions

Overall Width 20.5 in
Overall Height 19.9 in
Media Intake Connection Size 3 in
Overall Length 39.5 in
Air Intake Connection Size 1/2 in
Media Discharge Connection Size 3 in
Solid Diameter (Maximum) 2.46 in
Manufacturers Warranty Length 2 yr

Details

Pump Operation Type Air
Series 3150
Standards ATEX, CE, FDA Compliant
Media Temperature (Maximum) 180 Degrees F
Check Seat Material PTFE, Stainless Steel
Diaphragm Material Santoprene
Air Intake Connection Type NPT
Manifold Connection Single Port
Air Consumption (Maximum) 220 scfm
Flow Rate @ 70 psi 125 gpm
Includes Diaphragms
Flow Rate @ 120 psi 130 gpm
Media Temperature (Minimum) -40 Degrees F
Manifold Connection Type Tri-Clamp
Flow Rate @ 40 psi 120 gpm
Media Discharge Connection Type Flange
Flow Rate (Maximum) 130 gpm
Media Intake Connection Type Flange
Air Intake Pressure (Maximum) 120 psi
Item Large Particle AODD Pump
Operating Pressure (Maximum) 120 psi
Flow Rate @ 100 psi 130 gpm
Non-Wetted Housing Material 304 Stainless Steel, Aluminum, Plastic, Polypropylene
Duty Cycle Continuous
Viscosity (Maximum) 15,000 cps
Wetted Housing Material Stainless Steel
Media Discharge Location Bottom
Series Family SaniForce
Valve Material 316 Stainless Steel, PTFE
Pump Assembly Type Clamp
Priming Self-Priming
For Use With Potable Systems Yes
Media Intake Location Top
Feet of Head (Maximum) 276.9 ft

Description

Large Particle AODD Pump, Air Consumption (Maximum) 220 scfm, Air Intake Connection Size 1/2 in, Air Intake Connection Type NPT, Check Seat Material PTFE, Stainless Steel, Diaphragm Material Santoprene, Feet of Head (Maximum) 276.9 ft, Flow Rate (Maximum) 130 gpm, Manifold Connection Single Port, Media Discharge Connection Size 3 in, Media Discharge Connection Type Flange, Media Discharge Location Bottom, Media Intake Connection Size 3 in, Media Intake Connection Type Flange
