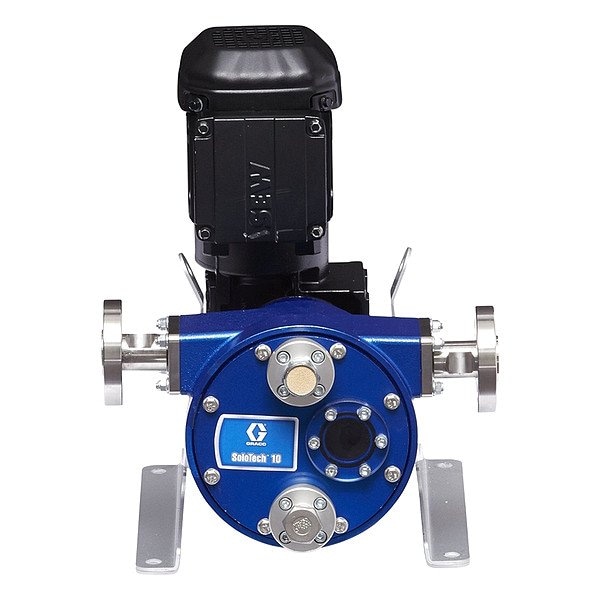

PeristalticPump, Aluminum, 0.67gpm, 1/2hp
- Mfr # 19Z019
- Zoro # G222253892
product price:Â
$
8,733.99
/ea
Free Shipping & Returns
Key Features
Discharge Standard
Flange
3-A Standard Compliance
Not Rated
Process Discharge Pressure - Maximum
125 psi
Hose Diameter
3/8 in
Housing Material
Aluminum
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 19Z019
- Zoro #
- G222253892
- UPC #
- 755652324676
- Country of Origin
- United States
- Discharge Standard
- Flange
- 3-A Standard Compliance
- Not Rated
- Process Discharge Pressure - Maximum
- 125 psi
- Housing Material
- Aluminum
- Includes Hose Leakage Sensor
- Hose Leakage Sensor Not Included
- Pump Technology
- Peristaltic
- Hose Material
- Synthetic Rubber
- Item
- Peristaltic Pump
- Flow Rate - Maximum
- 0.67 gpm
- Flow Rate - Minimum
- 0.04 gpm
- Rated Voltage
- 120/240 V AC
- Hose Barb Material
- PVDF
- Fluid Temperature - Maximum
- 104 Degrees F
- Gallons per Revolution
- 0.01 gal
- Horsepower
- 1/2 hp
- Phase
- Three
- Flow Rate Output Control
- Adjustable
- Motor Speed - Maximum
- 38 RPM
- DIN Standard
- DIN PN16
- Inlet Standard
- Flange
- Material FDA Compliance
- Not Rated
- ANSI Flange Class
- Class 150
- Housing Coating
- Powder Coated
Description
PeristalticPump,Aluminum,0.67gpm,1/2hp
