Shop SANDPIPER

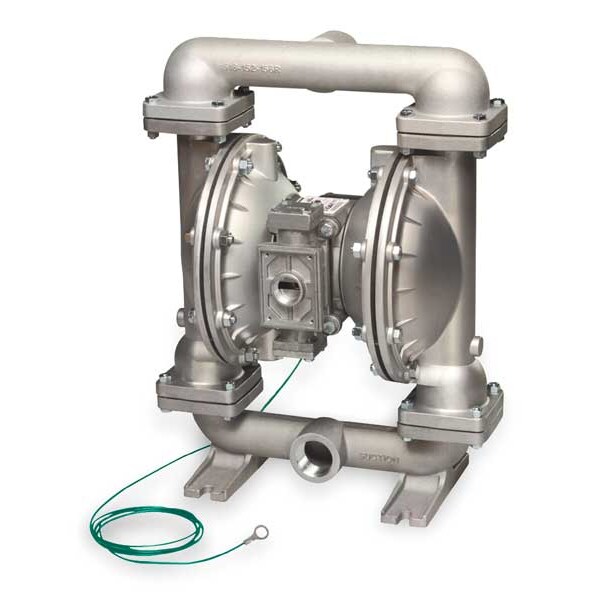

Double Diaphragm Pump, Aluminum, Natural Gas Operated, Buna N, 106 GPM

  • Mfr # G15B1ABTXNSX00.

  • Zoro # G1724642

product price:  $1,866.99
/ea
Free Shipping & Returns

Key Features

Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Ball
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
G15B1ABTXNSX00.
Zoro #
G1724642
UPC #
-
Country of Origin
United States

Dimensions

Air Intake Connection Size
1 1/2 in
Manufacturers Warranty Length
5 yr
Overall Width
16.7 in
Overall Height
22.1 in
Overall Length
16.7 in
Media Intake Connection Size
1 1/2 in
Media Discharge Connection Size
1 1/2 in
Solid Diameter (Maximum)
0.25 in

Details

Item
Double Diaphragm Pump
Housing Material - Pumps
Aluminum
Pump Assembly Type
Bolt
Manifold Connection
Single Port
Valve Material
Buna-N
Valve Type
Ball
Air Intake Connection Type
NPT
Check Seat Material
PTFE
Diaphragm Material
Buna-N
Media Temperature (Maximum)
190 Degrees F
Media Temperature (Minimum)
-10 Degrees F
Operating Pressure (Maximum)
100 psi
Self-Priming Dry
20 ft
Pump Operation Type
Gas
Self-Priming Wet
25 ft
Agency Compliance
ATEX,ABS, CE, EAC
Inlet/Outlet
1 1/2 in
Standards
ABS Type Approved, ATEX Certified, CSA Certified, NACE Standard MR0175/ISO15156
Media Discharge Location
Top
Air Intake Pressure (Maximum)
100 psi
Feet of Head (Maximum)
231 ft
Flow Rate @ 20 psi
53.5 gpm
For Use With Potable Systems
No
Flow Rate @ 100 psi
106 gpm
Media Discharge Connection Type
NPT
Mounting Hardware Material
Steel
Flow Rate @ 80 psi
98 gpm
Series Family
G15
Manifold Connection Type
NPT
Chemical Compatibility
Alcohol, Ammonium Hydroxide, Antifreeze, Diesel, Diesel Exhaust Fluid, Gasoline, Kerosene, Water
Flow Rate @ 40 psi
74.3 gpm
NPSHr
5 ft of head
Wetted Housing Material
Aluminum
Media Intake Location
Bottom
Flow Rate (Maximum)
106 gpm
Flow Rate @ 60 psi
94 gpm
Media Intake Connection Type
NPT
Priming
Self-Priming
Media Intake Port Configuration
Center Horizontal
Displacement Per Stroke
0.41 gal
Media Discharge Port Configuration
Center Horizontal
Diaphragm Base Material
Buna-N
Diaphragm Reinforcement
Fabric Reinforced
Includes Solenoid
No Solenoid Included
Manifold Port Connection Type
Single Port
Center Section Material
Aluminum
Manifold Connection Standard
NPT
Series
G15
Includes Clean In Place Technology
No Clean In Place Included
Material Conductivity
Conductive
Fluid Chamber Assembly Type
Bolted
Wetted Body Material
Aluminum

Description

Double Diaphragm Pump, Air Consumption (Maximum) 50 scfm, Air Intake Connection Size 1 1/2 in, Air Intake Connection Type NPT, Check Seat Material PTFE, Diaphragm Material Buna-N, Feet of Head (Maximum) 231 ft, Flow Rate (Maximum) 106 gpm, Manifold Connection Single Port, Media Discharge Connection Size 1 1/2 in, Media Discharge Connection Type NPT, Media Discharge Location Center, Top, Media Intake Connection Size 1 1/2 in, Media Intake Connection Type NPT, Media Intake Location Bottom, Center
