Shop All Hydraulic Sign Post Drivers
Greenlee

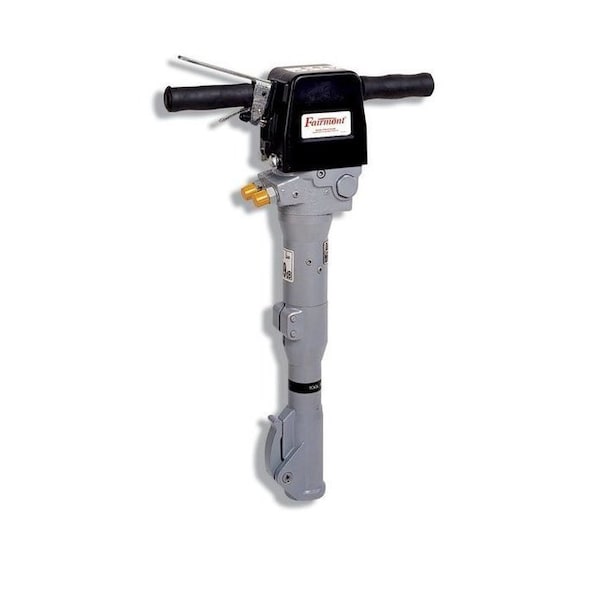

Paving Breaker, Hydraulic, 45 lb Class

product price: $3,481.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Hydraulic System Type Open Center
  • Blows per Minute 2,160
  • Recommended Hydraulic Flow 7 gpm
  • Return Port 1/2 in NPTF Female
  • Weight 47 lb
See all product information

Product Information

Dimensions

Height 28 1/2 in
Width 6 in
Shank Size 1 1/8 in x 6 in
Length 18 in
Tool Height 28 1/2 in
Tool Length 28 1/2 in
Tool Width 6 in
Piston Stroke Length 6 in

Details

Item Paving Breaker
Hydraulic System Type Open Center
Blows per Minute 2,160
Recommended Hydraulic Flow 7 gpm
Return Port 1/2 in NPTF Female
Weight 47 lb
Max. Oil Temp. 140 Degrees F
Min. Flow (GPM) 5
Viscosity (SUS @210 F) 40 min
Type Hydraulic
Impact Energy 63 ft-lb, 85 Joules
Sound Level dB 110
Weight Class 45 lb
Viscosity (SUS @ 100 F) 140 to 225
Max. Pressure (PSI) 2,300 psi
Max. Flow (GPM) 8
Relief Valve PSI Setting 2,300
Max. Back Pressure 400 psi
Includes 1/2 in BSP to 1/2 in NPTF Adaptors, Whip Hoses
Recommended Filtration (microns) 10
Pressure Port 1/2 in NPTF Female
Standards SAE Standard J1273
Product Type Paving Breaker
Minimum Flow Rate 5 gpm
Maximum Ideal Viscosity 40 cSt
Sound Level (dB) 110 dB
Relief Valve Pressure Setting 2,300 psi
Retainer Type Latch
Maximum Back Pressure 405 psi
Shank Shape Hex
Maximum Flow Rate 8 gpm
Minimum Oil Temperature 86 Degrees F
Recommended Filtration 10 micron
Handle Type Cushioned/Spring-Dampened
Minimum Operating Pressure 105 psi
Maximum Blows per Minute 2,160 bpm
Recommended Hydraulic Flow Rate 8 gpm
Maximum Oil Temperature 158 Degrees F
Maximum Operating Pressure 1,800 psi
Tool Weight 54 lb
Number of Chisels Included 2
Minimum Ideal Viscosity 20 cSt
Tool Series HPB45
Sound Level 110 dB

Description

Paving Breaker, Product Type Paving Breaker, Shank Size 1 1/8 in x 6 in, Shank Shape Hex, Maximum Blows per Minute 2,160 bpm, Piston Stroke Length 6 in, Pressure Port 1/2 in NPTF Female, Return Port 1/2 in NPTF Female, Minimum Operating Pressure 105 psi, Maximum Operating Pressure 1,800 psi, Minimum Flow Rate 5 gpm, Maximum Flow Rate 8 gpm, Sound Level 110 dB, Handle Type Cushioned/Spring-Dampened, Hydraulic System Type Open Center, Includes 1/2 in BSP to 1/2 in NPTF Adaptors, Whip Hoses
