Shop All Hydraulic Sign Post Drivers
Greenlee

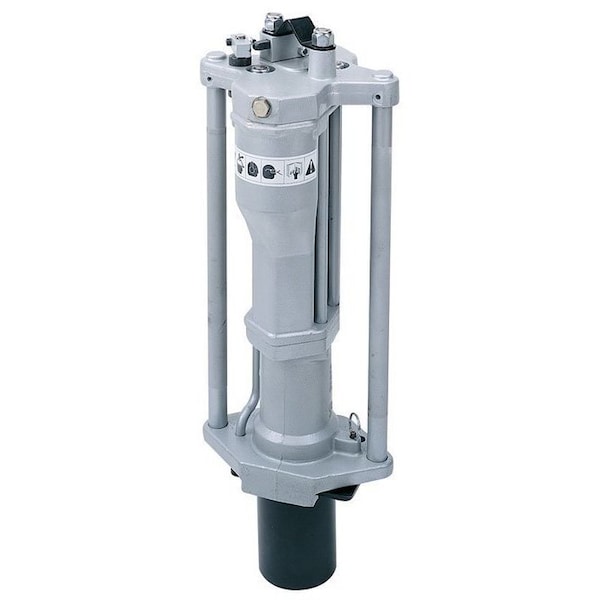

Sign Post Driver, Hydraulic, 8 gpm

product price: $3,714.61
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Hydraulic System Type Closed Center and Open Center
  • Capacity Universal
  • Blows per Minute 1500 @ 8 GPM
  • Recommended Hydraulic Flow 7 gpm
  • Min. Flow (GPM) 5
See all product information

Product Information

Dimensions

Width 10 in
Height 6.7 in
Length 25.8 in
Tool Width 10 in
Tool Length 32 in
Tool Height 6 11/16 in
Sign Post Drive Size 3 1/2 in

Details

Item Sign Post Driver
Hydraulic System Type Closed Center and Open Center
Capacity Universal
Blows per Minute 1500 @ 8 GPM
Recommended Hydraulic Flow 7 gpm
Min. Flow (GPM) 5
Viscosity (SUS @ 100 F) 140 to 225
Recommended Filtration (microns) 10
Return Port 3/4 in - 16 SAE
Weight 63.5 lb
Max. Back Pressure 405 psi
Includes (2) 1/2 in BSP to 1/2 in NPTF Adaptors, (2) 12 in Steel Braided Whip Hoses, Remote Hand Valve, Universal Post Adaptor
Max. Oil Temp. 140 Degrees F
Type Hydraulic w/Universal Adaptor
Max. Pressure (PSI) 2,300 psi
Relief Valve PSI Setting 2,300 psi
Pressure Port 9/16 in - 18 SAE O-Ring
Max. Flow (GPM) 8
Viscosity (SUS @210 F) 40 min
Features Dual Guide Handles
Relief Valve Pressure Setting 2,300 psi
Recommended Filtration 10 micron
Blow Energy 81 ft-lb
Valve Location Valve on Tube
Minimum Ideal Viscosity 20 cSt
Minimum Oil Temperature 86 Degrees F
Tool Series HPD
Minimum Operating Pressure 1,500 psi
Maximum Ideal Viscosity 40 cSt
Maximum Blows per Minute 1,500 bpm
Standards SAE Standard J1273
Product Type Sign Post Driver
Maximum Operating Pressure 2,300 psi
Recommended Hydraulic Flow Rate 7 gpm
Minimum Flow Rate 4 gpm
Maximum Back Pressure 405 psi
Maximum Oil Temperature 158 Degrees F
Tool Weight 75 lb
Maximum Flow Rate 6 gpm

Description

Sign Post Driver, Product Type Sign Post Driver, Sign Post Drive Size 3 1/2 in, Blow Energy 81 ft-lb, Maximum Blows per Minute 1,500 bpm, Tool Length 32 in, Valve Location Valve on Tube, Pressure Port 9/16 in - 18 SAE O-Ring, Return Port 3/4 in - 16 SAE, Minimum Operating Pressure 1,500 psi, Maximum Operating Pressure 2,300 psi, Minimum Flow Rate 4 gpm, Maximum Flow Rate 6 gpm, Foot Width Not Applicable, Foot Length Not Applicable, Tool Series HPD, Features Dual Guide Handles

Restrictions

  • Hazardous material
