  5. On-Wall Two-Level Drinking Fountain, 2 Level, 18 5/8 in D, 27 1/4 in H, 36 1/8 in W

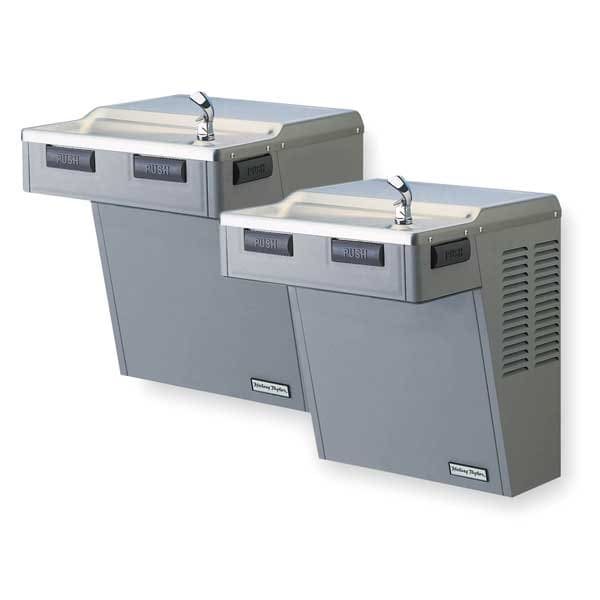

Halsey Taylor On-Wall Two-Level Drinking Fountain, 2 Level, 18 5/8 in D, 27 1/4 in H, 36 1/8 in W HAC8BLPV-NF - main

On-Wall Two-Level Drinking Fountain, 2 Level, 18 5/8 in D, 27 1/4 in H, 36 1/8 in W

  • Mfr # HAC8BLPV-NF

  • Zoro # G0714402

product price:  $1,355.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HAC8BLPV-NF
Zoro #
G0714402
UPC #
094902100012
Country of Origin
United States

Dimensions

Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Height
27 1/4 in
Width
36 1/8 in
Depth
18 5/8 in
Overall Width
21 in
Overall Height
38 in
Overall Depth
21 in
Inlet Tube Outside Diameter
1/4 in
Mounting Hole Diameter
7/16 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Drain Outside Diameter
1 1/4 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
Color
Silver
Refrigerant
R134A
Full Load Amps
4 A
Compressor HP
1/5 hp
Operation
Push Bar Fountain
Item
Two-Level Drinking Fountain
Cold Water Capacity
8 gph
Drain Connection
1 1/2 in
Water Temp.
50 Degrees F
Dispenser Design
Wall
Standards
NSF/ANSI 372, ADA, ASME A112.19.3, CAN/CSA C22.2 No. 120, CSA B45.4, ICC A117.1, NSF/ANSI 61, UL 399
Inlet
3/8 in OD
Dispenser Operation
Front and Side Pushbar
Refrigerated / Non-Refrigerated
Refrigerated
Vandal Resistant
No
Regulator
In-line Flow, Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Features
Double Bubbler Projects Two Separate Streams That Converge to Form a Fuller and More Satisfying Drink, Durable, Hermetically Sealed Refrigeration System, Mechanical Bubbler Push Bars
Minimum Constant Stream Pressure
20 psi
Power Source
Electric Corded
Housing Color
Silver
Station Type
Bi-Level Fountain
Compressor Horsepower
1/5 hp
Number of Mounting Holes
6
Refrigerant Type
R134A
Temperature Adjustment
Factory Set but Adjustable
Bi-Level Field Adjustable
Yes
Antimicrobial
No
Fountain Actuation
Front Pushbar/Side Pushbar
Minimum Supply Line Pressure
20 psi
Operating Voltage
115V AC
Environment
Indoor
Includes Pet Bowl
No
Includes Water Filter
No
Maximum Cold Water Temperature
50 Degrees F
Power Consumption
370 W
Number of Bubblers
1
Housing Finish
Platinum Vinyl
Maximum Constant Stream Pressure
105 psi
Refrigeration
Refrigerated
Full Load Current
4.5 A
Cooling Capacity
8 gph @ 50 Degrees F
Includes Back Panel
No

Description

Bi-Level Drinking Fountain, Station Type Bi-Level Fountain, Fountain Actuation Front Pushbar/Side Pushbar, Bottle Dispenser Actuation Not Applicable, Includes Water Filter Water Filter Not Included, ADA Compliant ADA Compliant, Cooling Capacity 8 gph @ 50 Degrees F, Housing Color Silver, Housing Finish Platinum Vinyl, Overall Height 38 in, Overall Depth 21 in, Overall Width 21 in, Mounting Location Wall Mount, Bi-Level Field Adjustable Bi-Level Field Adjustable
