  5. On-Wall Two-Level Drinking Fountain, 2 Level, 18 5/8 in D, 27 1/4 in H, 36 1/8 in W

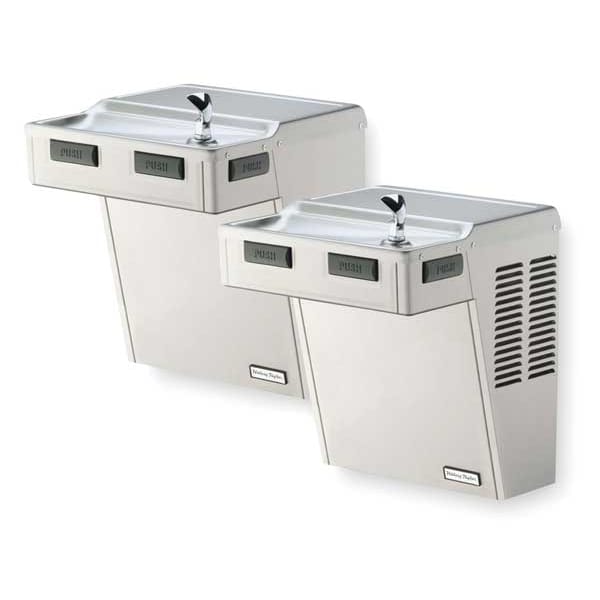

Halsey Taylor On-Wall Two-Level Drinking Fountain, 2 Level, 18 5/8 in D, 27 1/4 in H, 36 1/8 in W HAC8BLSS-NF - main

On-Wall Two-Level Drinking Fountain, 2 Level, 18 5/8 in D, 27 1/4 in H, 36 1/8 in W

  • Mfr # HAC8BLSS-NF

  • Zoro # G3309844

product price:  $1,404.99
/ea
Free Shipping & Returns

Key Features

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
HAC8BLSS-NF
Zoro #
G3309844
UPC #
094902100074
Country of Origin
United States

Dimensions

Height
27 1/4 in
Width
36 1/8 in
Manufacturers Warranty Length
5 yr on Refrigeration System, 1 yr Electrical Components and Water System
Depth
18 5/8 in
Overall Height
38 in
Overall Width
21 in
Mounting Hole Diameter
7/16 in
Manufacturer Warranty Length
1 yr Electrical Components, 1 yr Water System, 5 yr Refrigeration System
Overall Depth
21 in
Inlet Tube Outside Diameter
1/4 in
Drain Outside Diameter
1 1/4 in

Details

Mounting Type
On-Wall
Indoor / Outdoor
Indoor
ADA Compliant
Yes
Number of Levels
2
Voltage
115 V AC
Color
Silver
Refrigerant
R134A
Full Load Amps
4 A
Compressor HP
1/5 hp
Operation
Push Bar Fountain
Item
Two-Level Drinking Fountain
Refrigerated / Non-Refrigerated
Refrigerated
Inlet
3/8 in OD
Regulator
In-line Flow, Maintains Constant Stream Height at Line Pressures of 20 to 105 psi
Water Temp.
50 Degrees F
Vandal Resistant
No
Standards
NSF/ANSI 372, ADA, ASME A112.19.3, CAN/CSA C22.2 No. 120, CSA B45.4, ICC A117.1, NSF/ANSI 61, UL 399
Drain Connection
1 1/2 in
Dispenser Design
Wall
Cold Water Capacity
8 gph
Dispenser Operation
Front and Side Pushbar
Features
Corrosion Resistant, Double Bubbler Projects Two Separate Streams That Converge to Form a Fuller and More Satisfying Drink, Hermetically Sealed Refrigeration System, Mechanical Bubbler Push Bars
Includes Water Filter
No
Minimum Constant Stream Pressure
20 psi
Refrigeration
Refrigerated
Environment
Indoor
Temperature Adjustment
Factory Set but Adjustable
Includes Pet Bowl
No
Bi-Level Field Adjustable
Yes
Compressor Horsepower
1/5 hp
Cooling Capacity
8 gph @ 50 Degrees F
Minimum Supply Line Pressure
20 psi
Includes Back Panel
No
Housing Color
Silver
Maximum Cold Water Temperature
50 Degrees F
Maximum Constant Stream Pressure
105 psi
Housing Material
Stainless Steel
Operating Voltage
115V AC
Antimicrobial
No
Power Consumption
370 W
Full Load Current
4.5 A
Housing Finish
Plain
Number of Mounting Holes
6
Fountain Actuation
Front Pushbar/Side Pushbar
Number of Bubblers
1
Refrigerant Type
R134A
Power Source
Electric Corded
Station Type
Bi-Level Fountain

Description

Bi-Level Drinking Fountain, Station Type Bi-Level Fountain, Fountain Actuation Front Pushbar/Side Pushbar, Bottle Dispenser Actuation Not Applicable, Includes Water Filter Water Filter Not Included, ADA Compliant ADA Compliant, Cooling Capacity 8 gph @ 50 Degrees F, Housing Color Silver, Housing Finish Plain, Overall Height 38 in, Overall Depth 21 in, Overall Width 21 in, Mounting Location Wall Mount, Bi-Level Field Adjustable Bi-Level Field Adjustable, Includes Pet Bowl Pet Bowl Not Included

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
