Shop HARTELL

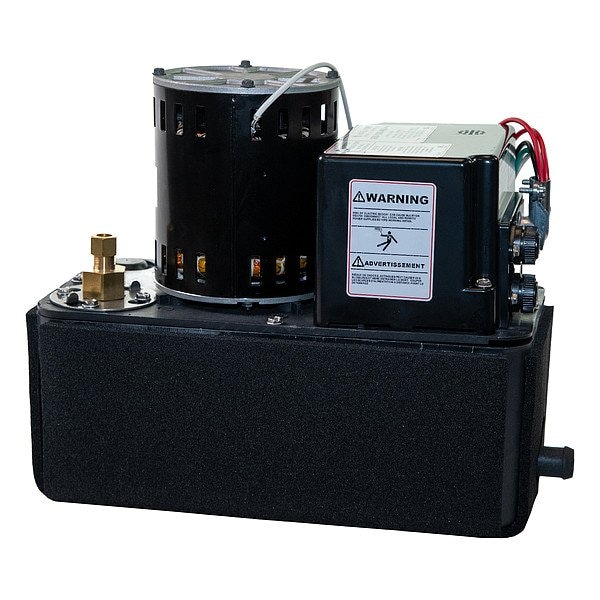

Condensate Removal Pump, 20.8 psi, Single

  • Mfr # A5X-1DR-460 / 134001P3

  • Zoro # G916261776

product price:
$
816.99
/ea
Free Shipping & Returns

Key Features

Horsepower
7/10 hp
Frequency
50/60 Hz
Phase
Single
Ambient Temperature - Minimum
50 Degrees F
Overall Width
6 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
A5X-1DR-460 / 134001P3
Zoro #
G916261776
UPC #
856472008811
Country of Origin
United States

Dimensions

Overall Width
6 in
For Discharge Pipe Diameter
3/8 in
Overall Length
12 in
Manufacturer Warranty Length
1 yr
Overall Height
10.37 in
Cord Length
6 ft
For Inlet Pipe Diameter
3/4 in
Wire Rope Length
12 in
Length
12 in

Details

Item
Condensate Removal Pump
Horsepower
7/10 hp
Frequency
50/60 Hz
Phase
Single
Ambient Temperature - Minimum
50 Degrees F
Pump Technology
Centrifugal
Inlet Standard
Open
Media Temperature - Maximum
212 Degrees F
Media Temperature - Minimum
50 Degrees F
Series
A5X-XX
Electrical Connection Type
Hardwired
Feet of Head - Maximum
60 ft
Maximum Flow Rate @ 5 Feet of Head
9 gpm
Shut Off Level
0.5 in
Tank Opacity
Solid
Maximum Flow Rate @ 15 Feet of Head
8.4 gpm
Priming
Self-Priming
Pump Casing Material
Polypropylene
Turn On Level
4 in
Power Source - TS Only
Corded Electric
Application
Condensate Removal
Includes Safety Switch
Safety Switch Included
Maximum Flow Rate @ 25 Feet of Head
6.5 gpm
Maximum Flow Rate @ 20 Feet of Head
8 gpm
Product Type
Condensate Removal Pump
Ambient Temperature - Maximum
212 Degrees F
Float Material
Plastic
Standards
UL 2043
Full Load Current
1.1 A
For Media Type
Clear Water
Operating Pressure - Maximum
20.8 psi
Includes Tubing
No Tubing Included
Nameplate Voltage
460V AC
Number of Inlets
1
Tank Material
Polypropylene
Connectivity
Auxiliary Contacts
Installation
Floor Standing
Maximum Flow Rate @ 10 Feet of Head
8.2 gpm
Pump Activation Type
Float Switch
Tank Capacity
1 gal
Maximum Flow Rate @ 1 Feet of Head
10 gpm
Discharge Standard
Barbed
Power Source
Corded Electric
Power Source - old
Corded Electric

Description

Condensate Removal Pump

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
