  11. Cicular Connector w. Harax 7/8" L5 M
Harting Cicular Connector w. Harax 7/8" L5 M 21041161505 - main

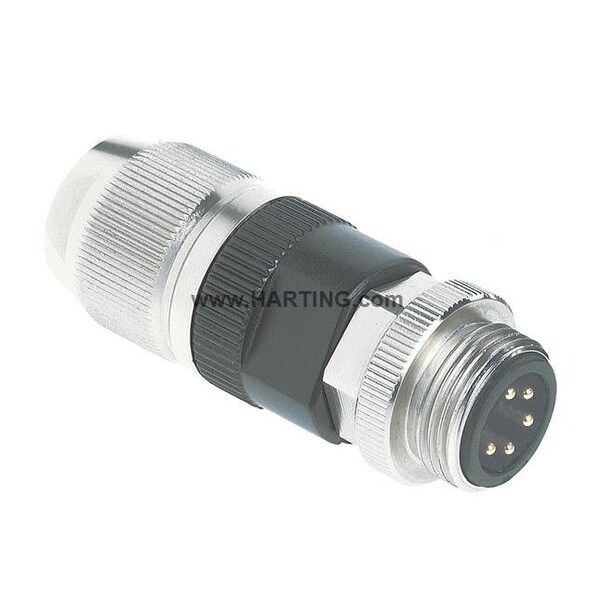

Cicular Connector w. Harax 7/8" L5 M

  • Mfr # 21041161505

  • Zoro # G2046229

product price: $72.59
/ea

Key Features

Maximum Voltage
230 V
IP Rating
IP65/IP67
Current
10 A
Maximum Operating Temperature
85 Degrees C
Diameter
2.8 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
21041161505
Zoro #
G2046229
UPC #
-
Country of Origin
Germany

Dimensions

Diameter
2.8 mm
Max. Single Wire Size
16 AWG
Min. Single Wire Size
18 AWG
Maximum Single Wire Size
16 AWG
Minimum Single Wire Size
18 AWG

Details

Item
Circular Connector
Maximum Voltage
230 V
IP Rating
IP65/IP67
Current
10 A
Maximum Operating Temperature
85 Degrees C
Connector Type
Male
Green Environmental Attribute
Pollution Degree 3
Max. Voltage
230 V
Connection Material
Copper Alloy
Finish
Au Over Ni
Description/Special Features
Straight
Max. Temp.
85°C
Material
Polyamide; Thermoplastic Polyurethane; Die Cast Zinc
Approximate Amperage Rating - Grounding Braid
10 A
Features
Straight
Sub-Category
Connectors
Ambient Temp. Range
-40 to 85°C
Type
Male
Terminal Type
HARAX
Contact Finish
Gold Plated
Number of Contacts
5
Current Rating
10 A

Description

Cable connector, Straight, Male, HARAX® connection technology, Polyamide (PA), Thermoplastic polyurethane (TPU), Contacts: 5, Copper alloy, Gold plated, Conductor cross-section: 0.75 ... 1.5 mm2, Rated current: ‌10 A
