  9. Diaphragm Pump, 12VDC, 4.5 gpm Max. Flow
Shop All Roller Spray Pumps
High-Flo

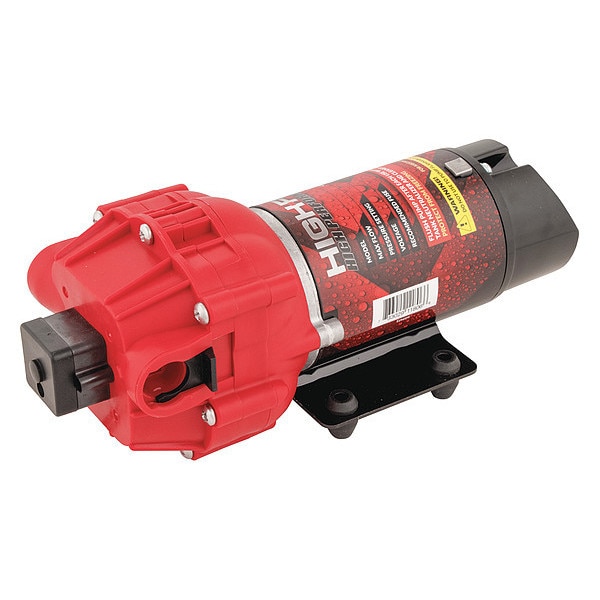

Diaphragm Pump, 12VDC, 4.5 gpm Max. Flow

product price: $149.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Diaphragm
  • Inlet/Outlet 1/2 in HB x 1/2 in MNPT
  • Housing Material - Pumps Plastic
  • Max. Temp - Pumps 140 Degrees F
  • Max. Flow 4.5 gpm
See all product information

Product Information

Dimensions

Length (In.) 11.0 in
Height (In.) 4.5 in
Width (In.) 4.5 in
Discharge Connection Size 3/4 in
Intake Connection Size 3/4 in
Overall Height 4.5 in
Overall Length 11 in
Manufacturers Warranty Length 2 yr Consumer or 90 day Commercial
Overall Width 4.5 in

Details

Item Diaphragm Pump
Type Diaphragm
Inlet/Outlet 1/2 in HB x 1/2 in MNPT
Housing Material - Pumps Plastic
Max. Temp - Pumps 140 Degrees F
Max. Flow 4.5 gpm
Max. Pressure - Pumps 60 psi
Voltage - Pumps 12V DC
Pressure Switch Yes
Motor Type TEFC
Features 100% Factory Tested, Chemical Resistant Elastomers, Fan Cooled Motor, Improved Check Valves, Increased Flow Rates, Increased Motor Life, Optimized Chamber Flow, Roundup(R) Ready, Runs Dry Without Damage, Self Priming
Pressure On 55 psi
Self-Priming Yes
Diaphragm Design Quad Chamber
GPM @ 0 PSI 4.5 gpm
Diaphragm Material Viton
GPM @ 20 PSI 3.88 gpm
Prime in Feet 8
Fuse Amps 15 A
Pressure Off 60 psi
Includes 1/2 in Hose Barb Fittings, 1/2 in MNPT
GPM @ 40 PSI 3.08 gpm
Check Valve Viton(R)
Housing Material GFPPL
Standards Not Rated
Motor Enclosure Totally Enclosed Fan Cooled
Flow Rate @ 0 psi 4.5 gpm
Duty Cycle Continuous
Diaphragm Chamber Design 4
Flow Rate @ 60 psi 0 gpm
Operating Pressure (Maximum) 60 psi
Nameplate Voltage 12V DC
Discharge Connection Type Quick Connect
Intake Connection Type Quick Connect
Check Valve Material Viton
Pump Operation Type Electric
Priming Self-Priming
Flow Rate @ 20 psi 3.88 gpm
Flow Rate @ 40 psi 3.08 gpm
Flow Rate (Maximum) 4.5 gpm
Media Temperature (Maximum) 140 Degrees F
Series High Performance
Current 13.7 A

Description

Diaphragm Pump, Air Consumption (Maximum) Not Applicable, Air Intake Pressure (Maximum) Not Applicable, Operating Pressure (Maximum) 60 psi, Air Intake Connection Size Not Applicable, Air Intake Connection Type Not Applicable, Diaphragm Chamber Design 4, Diaphragm Material Viton, Check Valve Material Viton, Discharge Connection Size 3/4 in, Discharge Connection Type Quick Connect, Flow Rate (Maximum) 4.5 gpm, Housing Material GFPPL, Intake Connection Size 3/4 in
