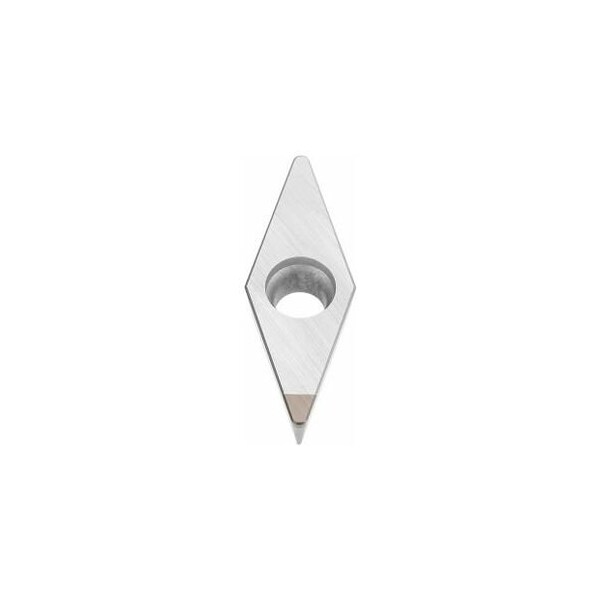

CBN Turning Insert, Diamond, VCMW160402, for Cast Iron
Mfr # 265786 M
Zoro # G414822820
product price: $33.65
/eaKey Features
Insert Material
CBN
Grade
BUX220
ISO Number
VCMW 160402
Corner Radius
0.2 mm
Min. Cutting Depth (ap min)
0.1 mm
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
265786 M
Zoro #
G414822820
UPC #
-
Country of Origin
Germany
Dimensions
Corner Radius
0.2 mm
Min. Cutting Depth (ap min)
0.1 mm
Insert Thickness
3 mm
Max. Cutting Depth (ap max)
0.25 mm
Cutting Depth
0.1 mm
Insert Size
160402
Details
Insert Material
CBN
Grade
BUX220
ISO Number
VCMW 160402
Insert Application
Finishing
Inscribed Circle
3
Item
Indexable Insert for Turning
Cutting Edge Version
Stainless Steel
Insert Style
VCMW
Insert Shape
35 Degrees Diamond
No. of Edges
1
Cutting Conditions
Continuous
Description
Disposable insert. Single cutting edge. Note: Further indexable insert shapes, sizes and corner radii available on request. Grade: BUX220 Cutting edge M Cutting depth ap: 0.1 0.25 mm Feed f: 0.1 0.2 mm/rev. Cutting speed vc main application: 80 200 m/min
