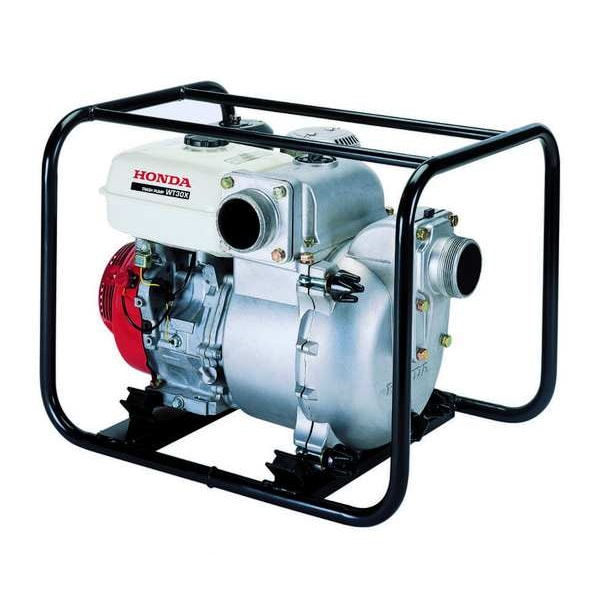

Engine Driven Trash Pump, 242 cc

  • Mfr # WT30XK4A

  • Zoro # G3660203


product price: $1,703.99
/ea
Item requires special delivery charges. A $115.00 per item surcharge will be applied.

Key Features

Engine Brand
Honda
Check Valve
Buna N
Engine RPM
4000
Impeller Type
Trash
Temp. Range
0 Degrees to 130 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
WT30XK4A
Zoro #
G3660203
UPC #
786102001755
Country of Origin
Japan

Dimensions

Width
19-1/2"
Length
26"
Engine Size
270 cc
Height
20"
Overall Height
20 in
Inlet Dia.
3 in
Max. Diameter Solids
1-1/16 in
Discharge Dia.
3 in
Overall Length
26 in
Overall Width
19 1/2 in
Inlet Diameter
3 in
Manufacturers Warranty Length
2 yr
Solids Diameter - Maximum
1 1/16 in
Discharge Diameter
3 in

Details

Engine Brand
Honda
Check Valve
Buna N
Engine RPM
4000
Impeller Type
Trash
Temp. Range
0 Degrees to 130 Degrees F
Impeller Material
Cast Iron
GPM of Water @ 10 Ft. of Head
310
Engine/Motor Type
Gas
Max. Head
82 ft
Sensor Type
Low Oil
Volute/Wear Plate
Cast Iron/Stainless Steel
GPM of Water @ 60 Ft. of Head
158
Inlet
3 in NPT
GPM of Water @ 80 Ft. of Head
55
Application
Trash
Mechanical Seal
Silicon Carbide
Item
Engine Driven Pump
Self-Priming
Yes
Max. Suction Lift
26 ft
GPM of Water @ 40 Ft. of Head
238
Number of Impellers
1
Ignition Type
Recoil-Start
GPM of Water @ 70 Ft. of Head
109
Seal Material
Silicon Carbide
Outlet
3" NPT
Roll Bar Frame
Steel
GPM of Water @ 20 Ft. of Head
296
Max. Pressure
39 psi
GPM of Water @ 50 Ft. of Head
201
Material of Construction
Cast Iron
Tank Capacity
1.4 gal
GPM of Water @ 30 Ft. of Head
267
Solids Handling Capacity
1-1/16"
Inlet Gender
Male
Discharge Standard
NPT
Impeller Design
Open
Flow Rate @ 80 Ft. of Head
55 gpm
Discharge
3 in MNPT
Power Source
Gas Engine
Maximum Discharge Pressure
39 psi
Flow Rate @ 10 Ft. of Head
310 gpm
Flow Rate @ 60 Ft. of Head
158 gpm
HP
8 2/5 hp
RPM
4,000 RPM
Frame Material
Steel
Inlet Standard
NPT
Pump Mechanism
Centrifugal
Max. Liquid Temp.
130 Degrees F
Discharge Gender
Male
Flow Rate @ 40 Ft. of Head
238 gpm
Volute Material
Cast Iron/Stainless Steel
Body Material
Aluminum
Flow Rate @ 20 Ft. of Head
296 gpm
Frame Design - Pumps
Full Tubular Frame
Includes
Hose Clamps and Strainer
Standards
EPA/CARB
Series
Honda Water Pumps
Suction Lift - Maximum
26 ft
Flow Rate @ 20 ft of Head
296 gpm
Liquid Temperature - Maximum
130 Degrees F
Self-Priming Lift - Maximum
26 ft
Feet of Head - Maximum
82 ft
Discharge Pressure - Maximum
39 psi
Horsepower
8 2/5 hp
Flow Rate @ 10 ft of Head
317 gpm
Frame Design
Roll Cage
Engine Series
GX270
Rotation Speed - Maximum
4,000 RPM
For Media Type
Trash Water

Description

Engine Driven Pump, Engine Size 270 cc, HP 8 2/5 hp, Tank Capacity 1.4 gal, Ignition Type Recoil-Start, Pump Mechanism Centrifugal, Body Material Aluminum, Volute Material Cast Iron/Stainless Steel, Seal Material Silicon Carbide, Frame Material Steel, Flow Rate @ 10 Ft. of Head 310 gpm, Flow Rate @ 20 Ft. of Head 296 gpm, Flow Rate @ 40 Ft. of Head 238 gpm, Flow Rate @ 60 Ft. of Head 158 gpm, Flow Rate @ 80 Ft. of Head 55 gpm, Max. Head 82 ft, Max. Suction Lift 26 ft

Restrictions

Hazardous material
This item has been restricted from sale in the following states: PR
