  15. 1NC/1NO Safety Interlock Switch Nema 1, 4, 12, 13

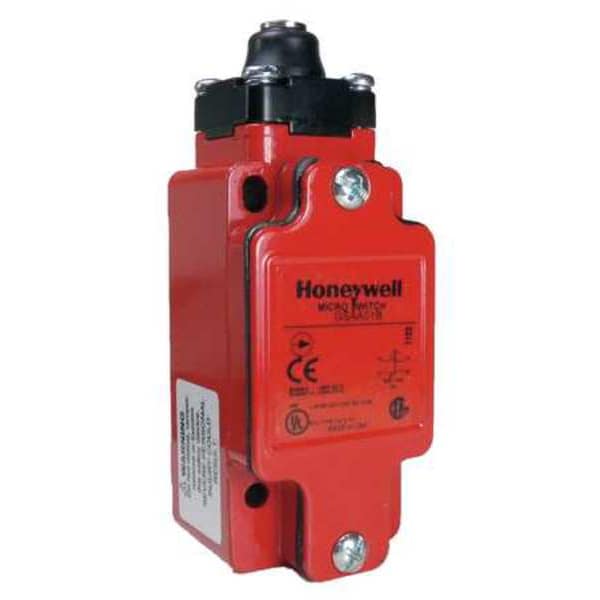

Honeywell 1NC/1NO Safety Interlock Switch Nema 1, 4, 12, 13 GSAA01B - main

1NC/1NO Safety Interlock Switch Nema 1, 4, 12, 13

  • Mfr # GSAA01B

  • Zoro # G4083597

product price: $155.99
/ea
Free Shipping & Returns

Key Features

Style
0.3 in dia Top Pin Plunger
Series
GSS
Actuator Length
1.48 in
AC Contact Rating
10 A
DC Contact Rating
0.1 to 10 A @ 250 V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GSAA01B
Zoro #
G4083597
UPC #
-
Country of Origin
United States

Dimensions

Actuator Length
1.48 in
Height
3.23 in
Width
1.65 in
Depth
1.65 in
Conduit Size
1/2 in NPT
Overall Height
3.23 in
Overall Width
1.65 in
Overall Depth
1.65 in

Details

Item
Safety Interlock Switch
Style
0.3 in dia Top Pin Plunger
Series
GSS
AC Contact Rating
10 A
DC Contact Rating
0.1 to 10 A @ 250 V
Contact Form
1NO/1NC
Connection Type
1/2 in NPT Conduit
IP Rating
IP67
Operating Temp. Range
-13 Degrees to 185 Degrees F
Positive Travel
56 mm
Differential Travel
11 mm
Operating Force
3.6 in-lb Max
Pre-travel
20mm
NEMA Rating
1, 12, 13, 4
Standards
CE, CSA, SIL3, UL Listed
Movement
Lateral
Contact Material
Silver
Number of Poles
1
Description/Special Features
EN50041 Body Type, Non Plug-In, Shock 50G per IEC 68-2-27, Vibration 10G per IEC 68-2-26, Mechanical Life 15 Million Operations, FP, OP, OT, PT All to EN50041, Head and Cover Fixed with TORX(R) Socket Head Screws (Driver Supplied)
Body Material
Zinc
Features
Environmentally Sealed, Red Switch Body
Electrical Connection
1/2 in NPT Conduit
Circuitry Action
Slow Action
Operating Temperature - Minimum
-13 Degrees F
Hazardous Location Specification
Not Rated
Pretravel
20 mm
Operating Temperature - Maximum
185 Degrees F
Includes Actuating Key
No Actuating Key Included
NEMA Enclosure Rating
1, 12, 13, 4

Description

Safety Interlock Switch, 0.3 in dia Top Pin Plunger, Contact Form 1NO/1NC, Actuator Length 1.48 in, Connection Type 1/2 in NPT Conduit, AC Contact Rating 10 A, Series GSS, DC Contact Rating 0.1 to 10 A @ 250 V, Solenoid Voltage Not Applicable, Height 3.23 in, Width 1.65 in, Depth 1.65 in, NEMA Rating 1, 12, 13, 4, IP Rating IP67, Operating Temp. Range -13 Degrees to 185 Degrees F, Contact Material Silver, Conduit Size 1/2 in NPT, Body Material Zinc
