  15. Explosion Proof Limit Switch, No Lever, Rotary, 2NC/2NO, 10A at 600V AC, Actuator Location: Side

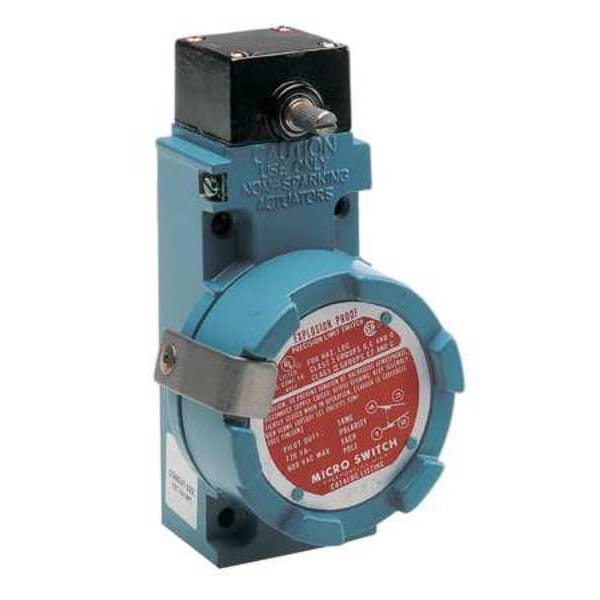

Honeywell Explosion Proof Limit Switch, No Lever, Rotary, 2NC/2NO, 10A at 600V AC, Actuator Location: Side BXN4L - main

Explosion Proof Limit Switch, No Lever, Rotary, 2NC/2NO, 10A at 600V AC, Actuator Location: Side

  • Mfr # BXN4L

  • Zoro # G4217561

product price: $1,104.99
/ea
Sold in multiples of 200 for $220,998.00
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BXN4L
Zoro #
G4217561
UPC #
-
Country of Origin
United States

Dimensions

Body Height - Limit Switch
4.75 in
Body Depth - Limit Switch
2.44 in
Body Width - Limit Switch
2.0 in
Depth
2.44"
Height
5.75"
Width
2.00"
Body Width
2.04 in
Overall Depth
2.88 in
Body Depth
2.88 in
Overall Height
5.75 in
Mounting Hole Diameter
0.2 in
Body Height
4.75 in

Details

Item
Explosion Proof Limit Switch
Basic Actuator Style - Limit Switch
Rotary
Actuator Style - Limit Switch
No Lever, Rotary
Contact Form- Switches
2NC/2NO
Actuator Location - Limit Switch
Side
AC Contact Rating - Limit Switch
10A at 600V
DC Contact Rating - Limit Switch
10A at 250V
Body Style - Limit Switch
Standard
Mounting - Limit Switch
Surface
Actuator Location (Limit Switch)
Side
IP Rating
67
Actuator Location
Side
NEMA Rating
1, 13, 3, 4, 6, 7
Certification
ATEX, IEC Ex, EExd IIC T6 category II 2 GD, SIRA 00ATEX 1037X
Amps
10
Standards
CSA, UL
Mounting Hole Pattern - Limit Switch
4 Hole Rectangular
Actuator Style
Rotary Head, No Lever
Body Style (Limit Switch)
Standard
Operating Temp. Range
-40 Degrees to 158 Degrees F
Contact Form - Limit Switch
2NC/2NO
Actuator Style (Limit Switch)
Rotary, No Lever
AC Contact Rating
10A at 600V
Body Material
Aluminum
Voltage Rating
600VAC/250VDC
DC Contact Rating
10A at 250V
Travel
Differential Travel 35 Degrees , Maximum Pretravel 65 Degrees , Minimum Over Travel 20 Degrees
Electrical Connection
Screw Terminals
Mounting Hole Spacing - Limit Switch
3.38 in x 1.50 in
Boot Sealed Actuator - Limit Switch
No
Mounting Hole - Limit Switch
(2) 0.20 in dia, (2) 5/16 -18 Thread
Series
BX
Limit Switch Style
Explosion Proof Limit Switch
Number of Poles
2
Movement
CCW Maintained, CW Maintained
Boot Sealed Actuator (Limit Switch)
No
Stem Thread - Limit Switch
No Stem
Basic Actuator Style (Limit Switch)
Rotary
Operating Force
4.0 in-lb
Wiring Entry
3/4 in NPT
Contact Form
2NC/2NO, DPDT
Differential Travel
40 Degrees
Hazardous Location Specification
Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G
Mounting Style
Surface
Directional Movement
CCW/CW
Mounting Hole Horizontal Center to Center Distance
38 mm
Action
Maintained
Boot Sealed Actuator
No Boot Included
Operating Temperature - Minimum
-20 Degrees F
Resistance Properties
Explosion Proof
Number of Mounting Holes
4
Overtravel
20 Degrees
Includes Actuator
No Actuator Included
Operating Torque - Maximum
4 in-lb
Mounting Hole Vertical Center to Center Distance
86 mm
Operating Temperature - Maximum
158 Degrees F
NEMA Enclosure Rating
1, 13, 3, 4, 4X, 6
Pretravel
65 Degrees

Description

Explosion Proof Limit Switch, Actuator Style - Limit Switch No Lever, Rotary, Actuator Location - Limit Switch Side, AC Contact Rating - Limit Switch 10A @ 600V, DC Contact Rating - Limit Switch 10A @ 250V, Contact Form- Switches 2NC/2NO, Body Height - Limit Switch 4.75 in, Body Width - Limit Switch 2 in, Body Depth - Limit Switch 2.44 in, Boot Sealed Actuator - Limit Switch No, Body Style - Limit Switch Standard, NEMA Rating 1, 13, 3, 4, 6, 7, Mounting - Limit Switch Surface
