Shop HONEYWELL HOME

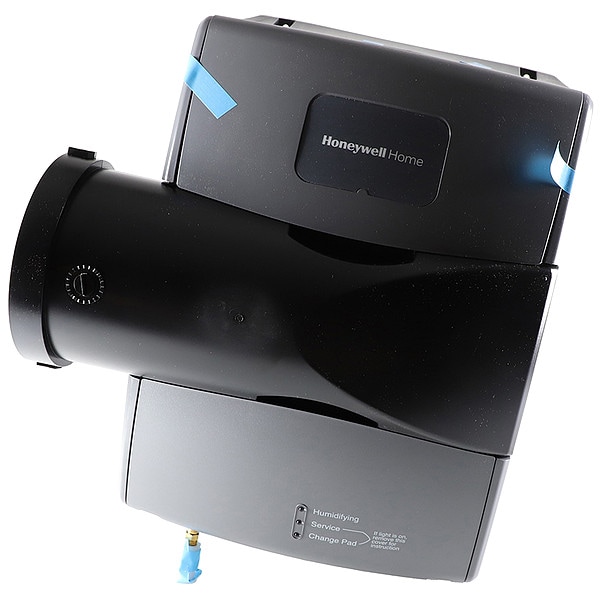

Furnace Humidifier, 2,500 sq. ft., Drain Bypass, Gray

  • Mfr # HE250A1005

  • Zoro # G1774622

product price:  $393.99
/ea
Free Shipping & Returns

Key Features

Voltage
24V AC
Drain Type
Gravity Drain
Color
Gray
Depth
10 1/8 in
Height
17 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
HE250A1005
Zoro #
G1774622
UPC #
-
Country of Origin
Mexico

Dimensions

Depth
10 1/8 in
Height
17 1/2 in
Width
15 in
Overall Width
15 in
Overall Height
17 1/8 in
For Plenum Opening Width
9 3/4 in
Bypass Opening Diameter
6 in
Drain Hose Diameter
1/2 in
Overall Depth
10 1/8 in
Drain Hose Length
10 ft
For Plenum Opening Height
12 5/8 in
Manufacturer Warranty Length
5 yr

Details

Item
Duct Mount Humidifier
Voltage
24V AC
Drain Type
Gravity Drain
Color
Gray
Max. Square Foot Capacity
2,500
Includes
Automatic Damper, Humidifier Fan, Humidipro Digital Humidity Control, Maintenance LED, Service LED, Status LED, Water Supply Line
Wick Treated With
AgION Antimicrobial Agent
Warranty
5 yr
Replacement Filter
HC26A1008
Plenum Opening Required
12 5/8 in H x 9 3/4 in W
Amps AC
0.57 A
Number of Speeds
1
Type
Drain Bypass
Standards
cUL, ISO 9001, UL
Coverage Area
2,500 sq ft
Outdoor Temperature Sensor
Outdoor Temperature Sensor Included
Operating Temperature Range
90 Degrees F
Housing Color
Gray
Control Type
On/Off Switch
Terminal Designations
C, Gf, Gt or W, HUM, Power In, Power Out, R, Sensor
Includes Mounting Hardware
Mounting Hardware Included
Humidistat Control Modes
Automatic/Manual
Water Supply
Water Line
Includes Saddle Valve
Saddle Valve Included
Window Frost Protection
Window Frost Protection Included
Humidifier Type
Bypass
Daily Humidification Output
17 gal
Pad/Wick Change Reminder
Yes
Humidity Settings
60 %
Operating Humidity Range
95 %
Humidification Method
Evaporation
Drain Hose Material
Plastic
Amperage
0.75 A
Includes Solenoid Valve
Solenoid Valve Included
Corrosion Resistant
Not Corrosion-Resistant
Control Range
20 %
Control Method
Handheld Remote
Operating Humidity - Minimum
0 %
Operating Temperature - Minimum
34 Degrees F
Filter Change Reminder
Change Pad/Wick

Description

Furnace Humidifier, Drain Bypass, Height (In.) 17-1/2, Width (In.) 15, Depth (In.) 10-1/8, Plenum Opening Required (in.) 12-5/8H x 9-3/4W, Max. Water Usage (Gal./24 Hrs.) 17, Continuous Drain, Color Gray, Includes Automatic Damper, Status, Maintenance, Service LEDs
