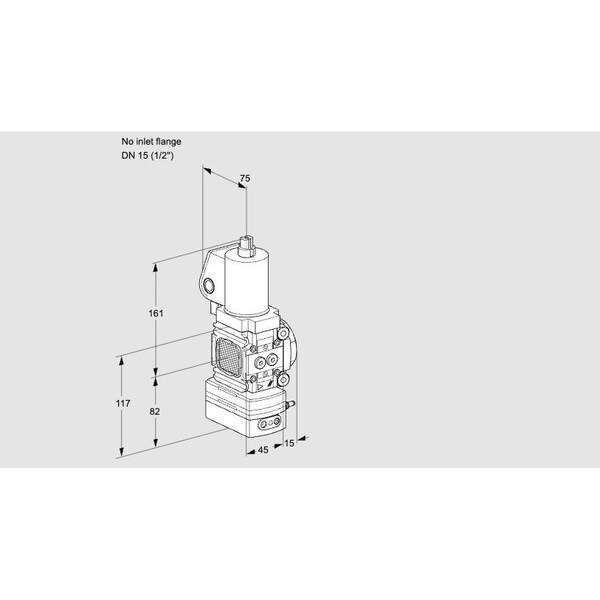

Gas Pressure Regulator with Solenoid Valve, DN 15, 24V DC, IP65 Rated
Mfr # KS88030542
Zoro # G415402083
Specifications
Product Information
Description
The HONEYWELL KROMSCHRODER VAD1T-/15N/NQSL-50B is a pressure regulator intended for regulation and control of gas pressure in compatible systems. This unit integrates both a Class A pressure regulator (EN 88) and a Class A solenoid valve (EN 161), making it suitable for use with gas, air, and biologically produced methane. It features an outlet connection of DN 15 (1/2" Rp internal thread) without an inlet flange, operates at a maximum inlet pressure of 500 mbar (7 psig), and provides an adjustable outlet pressure range from 35 to 100 mbar.
Key features include:
- Integrated pilot lamp for status indication
- IP65 rated enclosure for protection against dust and water ingress
- FM and SA approvals; EU certified
- Features rapid actuation capability
- Mains voltage: 24 V DC; electrical connection via M20 cable gland on the right side of the connection box
- Valve seat reduced design; size 1 configuration
- Right-side accessory: Pressure switch (30–110 mbar) with test point at outlet pressure; left-side accessory: two screw plugs
