Gas Pressure Switch, DG 500UG, 0.4–500 mbar Range

The HONEYWELL KROMSCHRODER SW,PRESS,GAS,DG 500UG 9K2 is a gas pressure switch rated for use with positive gas and air pressures, as well as negative and differential air pressures. This device includes a setting dial to adjust the switching point within specified parameters and operates with media such as gas, air, and flue gases. The DG model represents the European version of this product.

Key features include:

• Pressure range: 0.4 to 500 mbar (0.16 to 200 "WC)

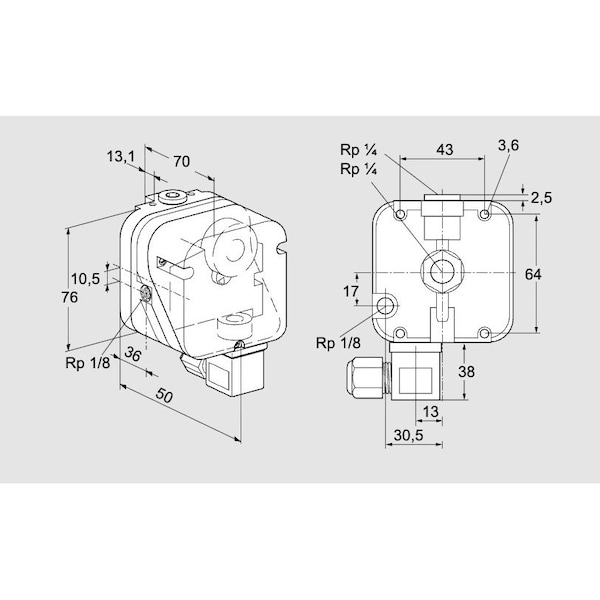

• Pneumatic connections: Internal Rp 1/8" (2x), Rp 1/4" (2x)
• Contact options: Silver contacts (24–250V AC, 0.05–5A) or gold contacts (5–250V AC, 0.01–5A)
• Electrical connection: Screw terminals with M16x1.5 cable gland or optional 4-pin plug/socket
• Certifications: EU certified, AGA approved, EAC approved
• Constructed without the use of silicon-based materials
