Pressure Switch - Air/Flue Gas, Adjustable, 1.5–150 mbar

The HONEYWELL KROMSCHRODER SW,PRESS,AIR,DL 1,5A 5Z is an A/C pressure switch rated for use in applications involving air and flue gas pressure measurement. It is compatible with positive, negative, and differential pressure measurements within specified ranges when used with air, flue gas, or non-aggressive gases. The switching point is adjustable within the specified range using the provided setting dial.

Key features:

• Pressure range: -1.5 to 150 mbar (0.12 to 20"WC)
• Adjustable switching point with setting dial

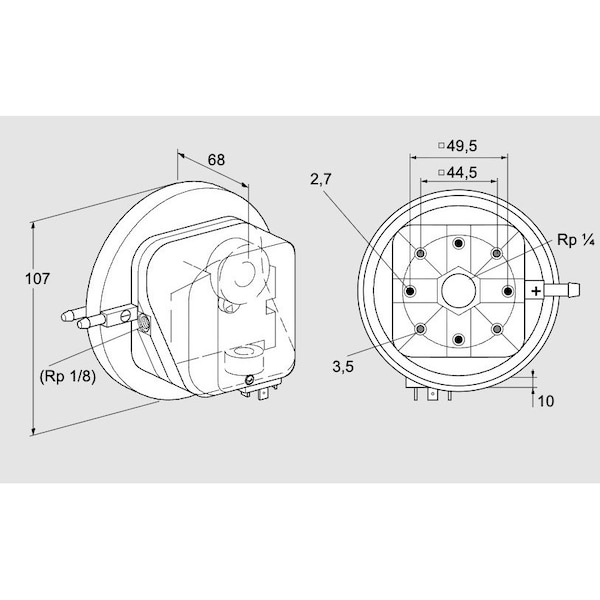

• Tube connections; CE versions: Rp 1/4, Rp 1/8; UL versions: 1/4" NPT, 1/8" NPT
• Contact options include silver or gold contacts for different voltage and current ratings
• Screw terminals with M16x1.5 cable gland or 1/2" NPT conduit entry
• Certified by EU, UL listed, FM approved, AGA approved
• Silicon-free construction
