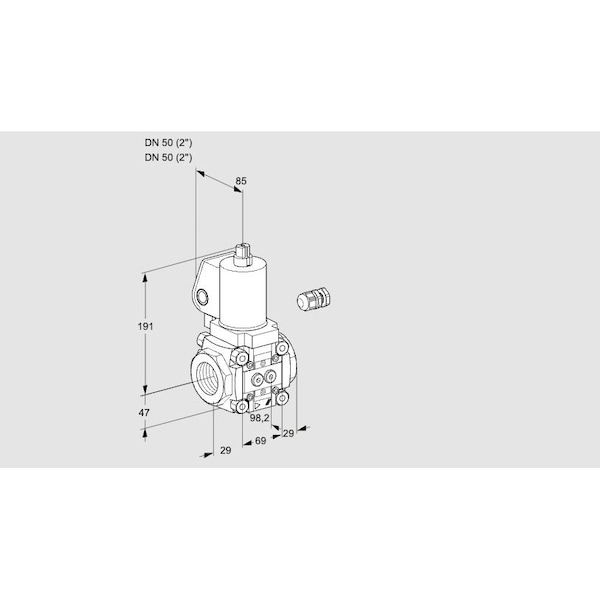

Solenoid Gas Safety Valve - Class A, 500 mbar, IP65 Rated

The HONEYWELL KROMSCHRODER VAS250R/NKGL is a Class A solenoid gas safety valve intended for use in applications requiring automatic shut-off of gas and air lines. It operates in accordance with EN 161 standards, remaining closed when not energized, and supports a maximum operating pressure of 500 mbar. The unit features a pilot lamp and flow adjustment capabilities, has an ingress protection rating of IP65, and holds EU certification as well as FM and CSA approvals. This model is certified for use in systems up to SIL 3 and PL e.

Key features include:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Opening/closing action: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• Available versions with position indicator (visual), fitted bypass/pilot gas valve, or integrated pressure switches DG../VC
