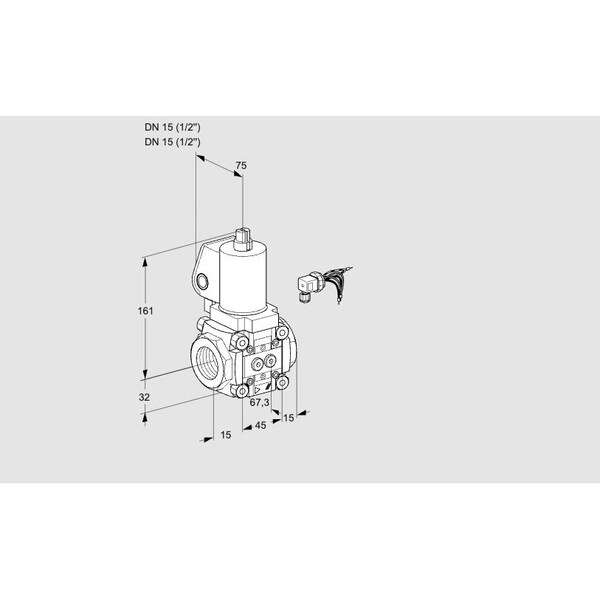

Solenoid Gas Valve - VAS115R/NKGL, Class A, 500 mbar, EN 161 Rated

The HONEYWELL KROMSCHRODER VAS115R/NKGL is a Class A solenoid gas valve intended for use in automatic shut-off applications. This valve operates in accordance with EN 161 standards and is intended for use with gas and air, featuring a maximum operating pressure of 500 mbar. When de-energized, the valve is in the closed position and includes both a pilot lamp and flow adjustment capabilities. It is certified to applicable standards: EU, FM, CSA, SIL 3, and PL e.

Key features:

• Size range: 1 to 9; DN (nominal diameter): 10 to 125
• Connection options: threaded or flanged
• Operation modes: quick opening/quick closing or slow opening/quick closing
• Mains voltage compatibility: 24 V DC, 120 V AC, or 230 V AC
• Electrical connection via terminal block
• IP65 enclosure rating for ingress protection
• Available versions include models with position indicators (visual), fitted bypass/pilot gas valves, or integrated pressure switches
