  15. Limit Switch - Compact, Plunger Actuator, SPDT, 15A 600V AC, IP66

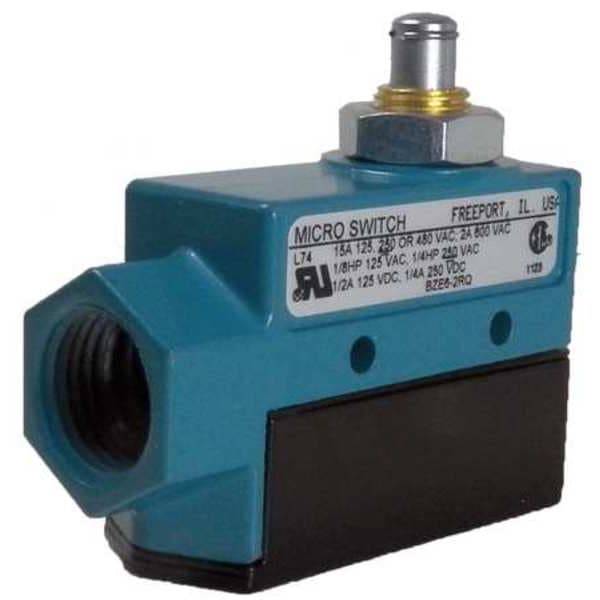

Honeywell Limit Switch - Compact, Plunger Actuator, SPDT, 15A 600V AC, IP66 BZE6-2RQ - main

Limit Switch - Compact, Plunger Actuator, SPDT, 15A 600V AC, IP66

  • Mfr # BZE6-2RQ

  • Zoro # G4323243

product price: $77.19
/ea
Free Shipping & Returns

Key Features

Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 600V
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BZE6-2RQ
Zoro #
G4323243
UPC #
078454921240
Country of Origin
United States

Dimensions

Actuator Length
0.75"
Width
1.00"
Height
2.50"
Body Height - Limit Switch
1.75 in
Body Width - Limit Switch
3.04 in
Body Depth - Limit Switch
1.0 in
Actuator Length - Limit Switch
0.75 in
Depth
3.04"
Body Width
3.04 in
Body Depth
1 in
Mounting Hole Diameter
0.98 in
Body Height
1.75 in
Overall Depth
1 in
Overall Width
3.04 in

Details

Item
Limit Switch
Basic Actuator Style - Limit Switch
Plunger
Actuator Style - Limit Switch
Plunger
Contact Form- Switches
1NC/1NO
Actuator Location - Limit Switch
Top
AC Contact Rating - Limit Switch
15A at 600V
DC Contact Rating - Limit Switch
2A at 250V
Body Style - Limit Switch
Miniature
Mounting - Limit Switch
Surface
Boot Sealed Actuator (Limit Switch)
No
Travel
Differential Travel 0.002 in, Maximum Pretravel 0.015 in, Minimum Over Travel 0.219 in
Mounting Hole Pattern - Limit Switch
2 Hole Horizontal
Voltage Rating
600VAC/250VDC
Number of Poles
1
Body Material
Zinc Die Cast
AC Contact Rating
15A at 600V
Mounting Hole - Limit Switch
(2) 0.22 in dia
Actuator Location
Top
Actuator Location (Limit Switch)
Top
Standards
CSA, UL
Operating Temp. Range
-25 Degrees to 160 Degrees F
Actuator Style (Limit Switch)
Plunger
Mounting Hole Spacing - Limit Switch
1.00 in
Limit Switch Style
General Purpose Limit Switch
Actuator Style
Plunger
Basic Actuator Style (Limit Switch)
Plunger
Wiring Entry
1/2 in NPT
Stem Thread - Limit Switch
No Stem
NEMA Rating
1
Series
BZ
Electrical Connection
Screw Terminals
DC Contact Rating
2A at 250V
IP Rating
66
Movement
Release Force 0.25 lb min
Body Style (Limit Switch)
Miniature
Operating Force
9 oz to 13 oz
Amps
15 Ind./2 Ind./0.5 Res./0.25 Res
Boot Sealed Actuator - Limit Switch
No
Contact Form - Limit Switch
1NC/1NO
Contact Form
1NC/1NO, SPDT
Differential Travel
0.002 in
NEMA Enclosure Rating
1
Operating Temperature - Minimum
-25 Degrees F
Pretravel
0.02 in
Overtravel
0.22 in
Operating Force - Maximum
13 ozf
Operating Force - Minimum
9 ozf
Number of Mounting Holes
2
Operating Temperature - Maximum
160 Degrees F
Mounting Style
Surface
Mounting Hole Horizontal Center to Center Distance
25 mm
Body Configuration
Non Plug-In
Boot Sealed Actuator
No Boot Included

Description

Honeywell's BZ Series Limit Switch features a plunger actuator located at the top of a miniature zinc die-cast body. Suitable for a variety of applications as specified by the manufacturer, this limit switch provides surface mounting capability with two horizontal mounting holes and screw terminal electrical connections per product specifications. The compact design allows installation in areas with limited space.

Key Features:

  • Contact Form: 1NC/1NO (SPDT)
  • AC Contact Rating: 15A at 600V
  • DC Contact Rating: 2A at 250V
  • Actuator Style: Plunger, Top Location, Length 0.75 in
  • Body Dimensions: Height 1.75 in, Width 3.04 in, Depth 1 in
  • Mounting Style: Surface; Two mounting holes (0.22 in diameter), spaced horizontally at 1.00 in center-to-center distance
  • Electrical Connection: Screw terminals; Wiring entry is 1/2 in NPT
  • Operating Force Range: Minimum 9 ozf to Maximum 13 ozf
  • Travel Parameters: Differential travel of 0.002 in, pretravel of up to 0.02 in, overtravel of up to 0.22 in
  • Temperature Range: -25°F to +160°F
  • Ratings and Standards: IP66 enclosure rating; NEMA Type 1; CSA and UL listed
